Test needle; Operational spring compression: 2.7mm; 5A; Ø: 1.07mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-002 201 107 A 1800
    Manufacturer: INGUN
    Manufacturer code: GKS-002 201 107 A 1800
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Type of test accessories

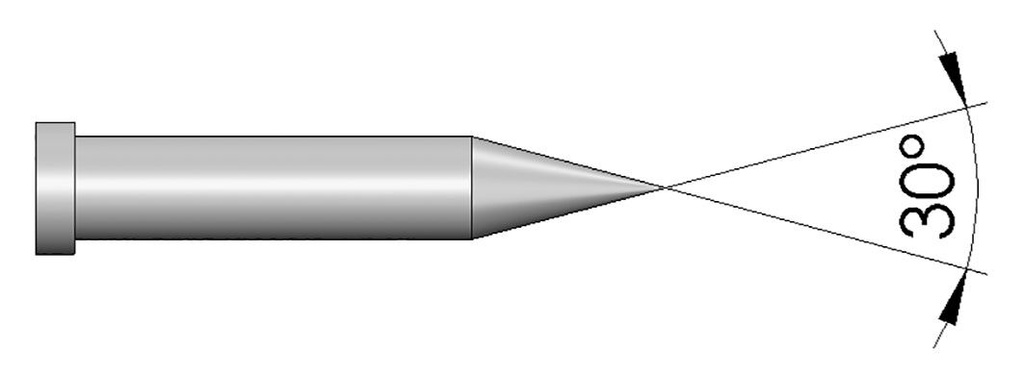

    • Blade tip shape

    2.73 € 2.73 € (wo VAT) 2.73 EUR

    2.73 €

    This combination does not exist.

    Add to Cart

    Product downloads

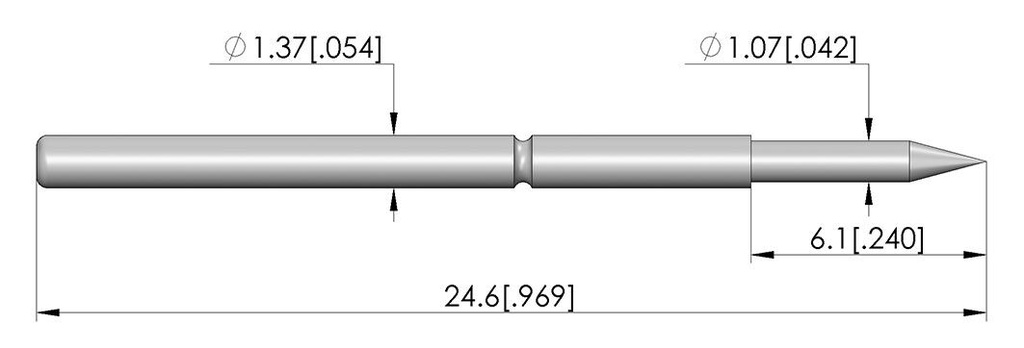

    Specification for Test needle; Operational spring compression: 2.7mm; 5A; Ø: 1.07mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance: 20mΩ
    Length 24.6mm
    Current rating 5A
    Type of test accessories test probe
    Blade tip shape sharp
