Test needle; Operational spring compression: 2.4mm; 4A; Ø: 1mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-001 306 100 A 1500
    Manufacturer: INGUN
    Manufacturer code: GKS-001 306 100 A 1500
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories

    9.12 € 9.12 € (wo VAT) 9.120000000000001 EUR

    9.12 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 2.4mm; 4A; Ø: 1mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ

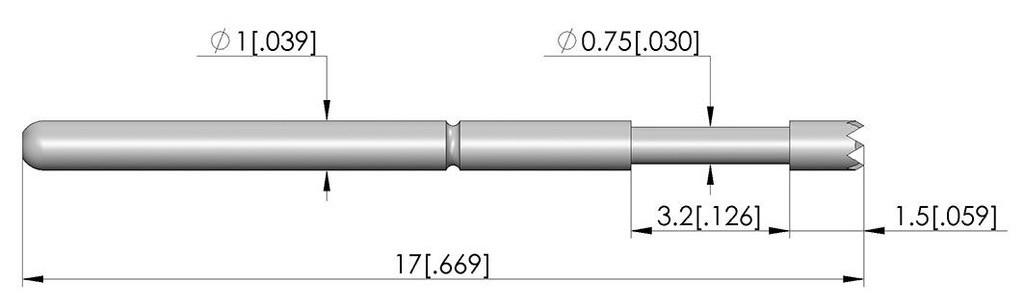

    Length 17mm
    Current rating 4A

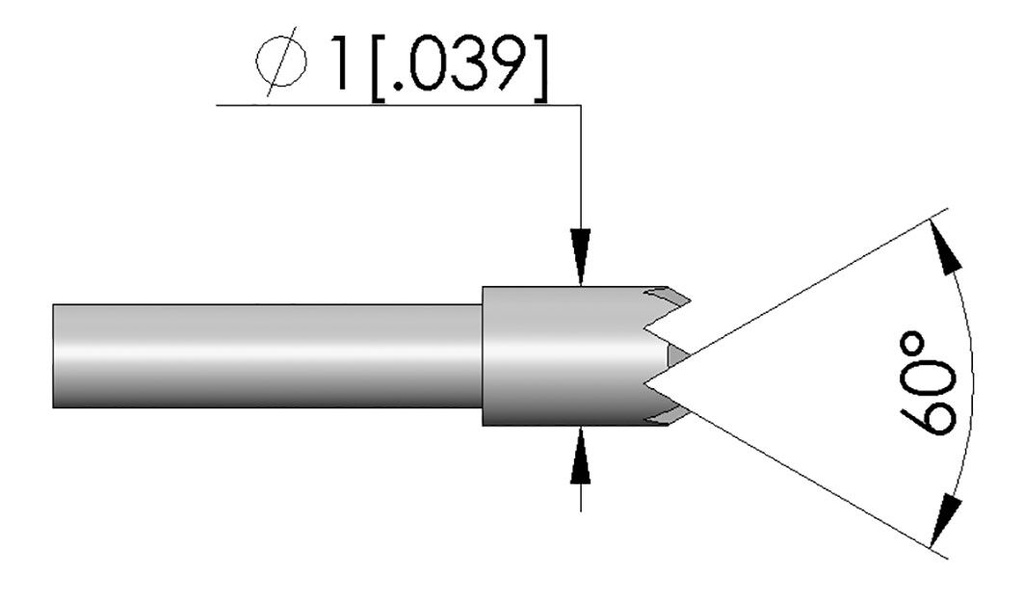

    Tip diameter 1mm
    Type of test accessories test probe
