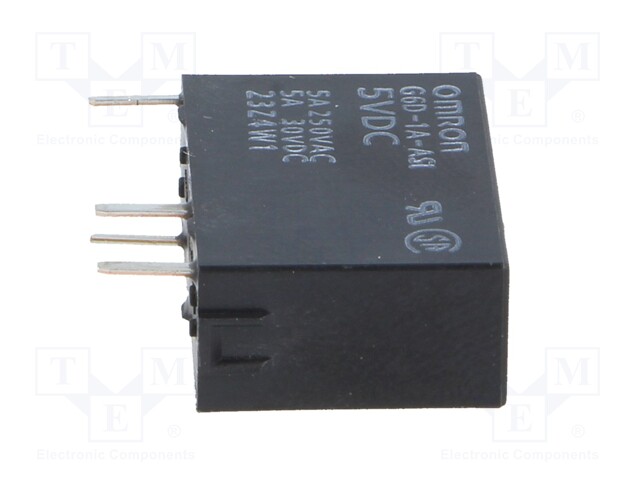

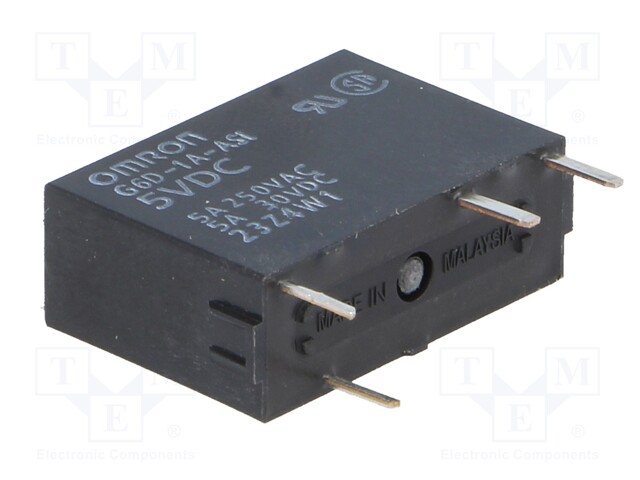

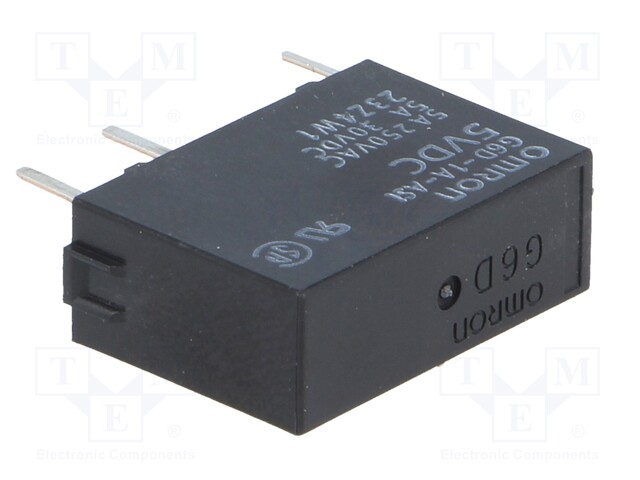

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
G6D-1A-ASI DC5
Manufacturer: OMRON OCB
Manufacturer code: G6D-1A-ASI DC5
Product downloads
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC
Mounting | PCB, socket |
Operating temperature | -25...70°C |
Terminal pitch | 5.08mm |
Body dimensions | 17.5x6.5x12.5mm |
Switched voltage | max. 30V DC, max. 250V AC |
Coil resistance | 125Ω |
Rated coil voltage | 5V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 5A / 30V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 5A / 250V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil power consumption | 200mW |
Relay series | G6D |
Operate time | 10ms |
Release time | 5ms |
Coil current | 40mA |
