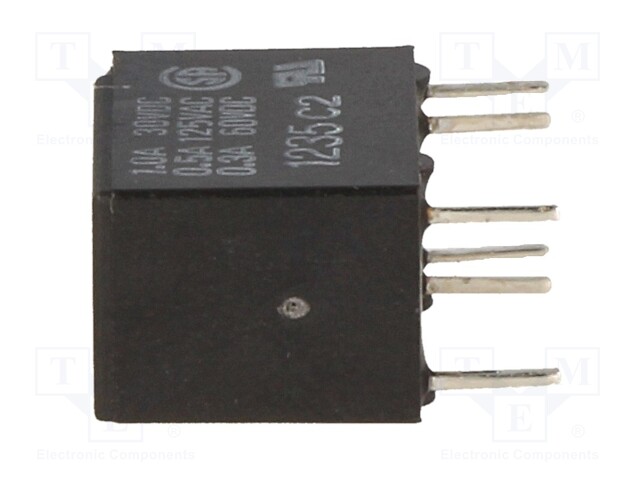

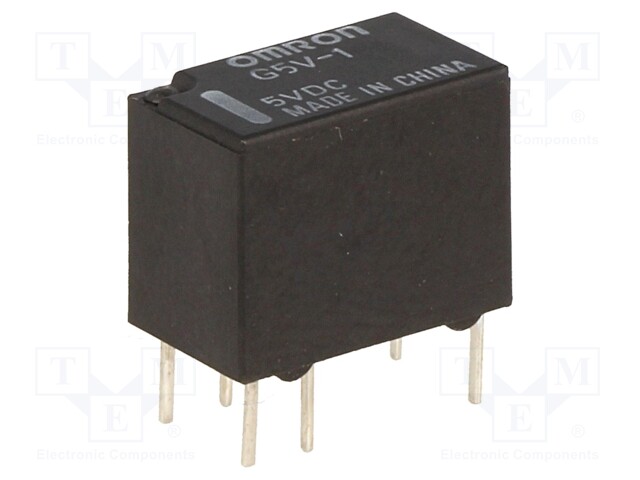

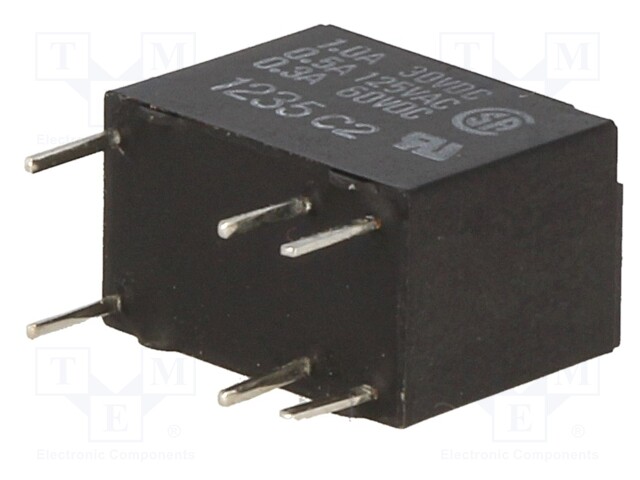

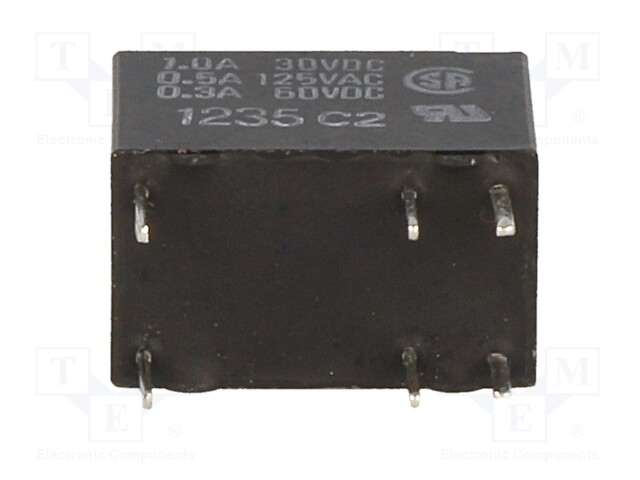

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G5V-1 5VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G5V-1 5VDC
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    2.58 € 2.58 € (wo VAT) 2.58 EUR

    2.58 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -30...70°C
    Terminal pitch 2.54mm
    Body dimensions 12.5x7.5x10mm
    Switched voltage max. 60V DC, max. 125V AC
    Coil resistance 166.7Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 150mW
    Relay series G5V-1
    Coil current 30mA
