Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
G5Q-1A 24DC
Manufacturer: OMRON OCB
Manufacturer code: G5Q-1A 24DC
Product downloads
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC
Mounting | PCB |
Operating temperature | -40...85°C |
Terminal pitch | 7.62mm |

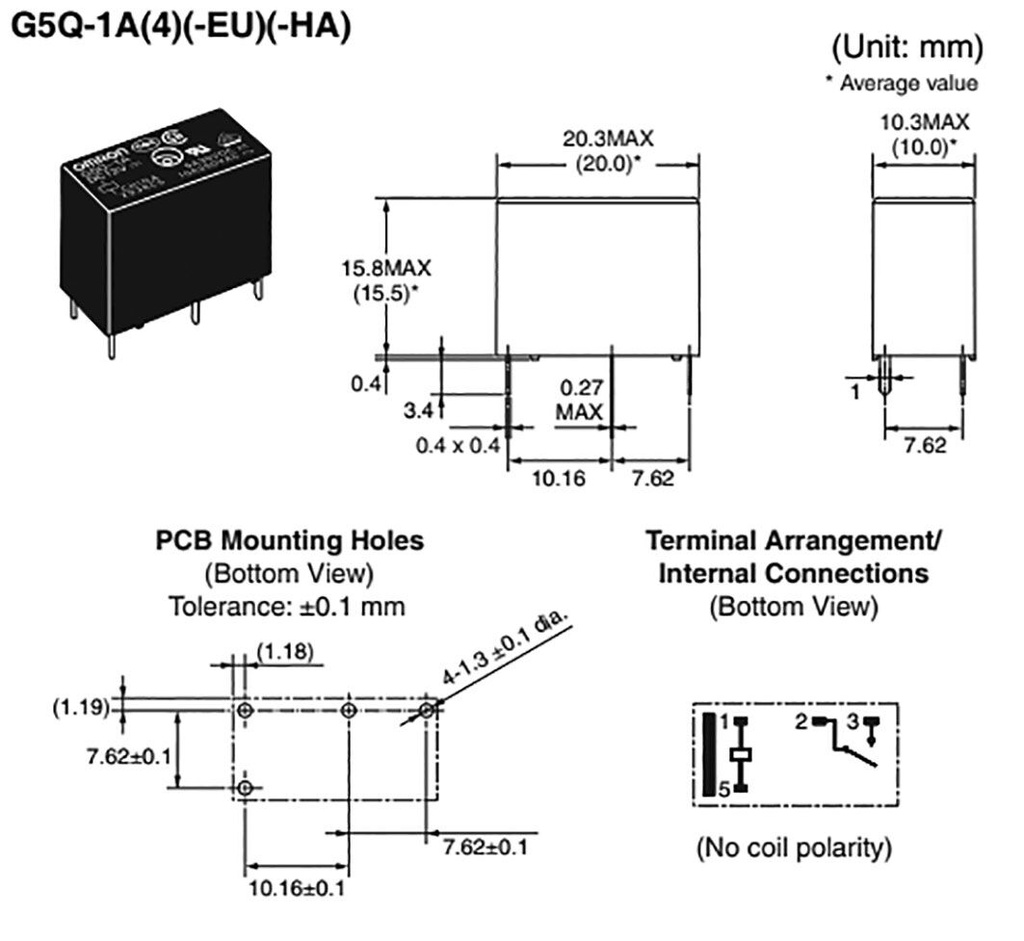

Body dimensions | 20.3x10.3x15.8mm |
Switched voltage | max. 30V DC, max. 277V AC |
Coil resistance | 1.44kΩ |
Rated coil voltage | 24V DC |

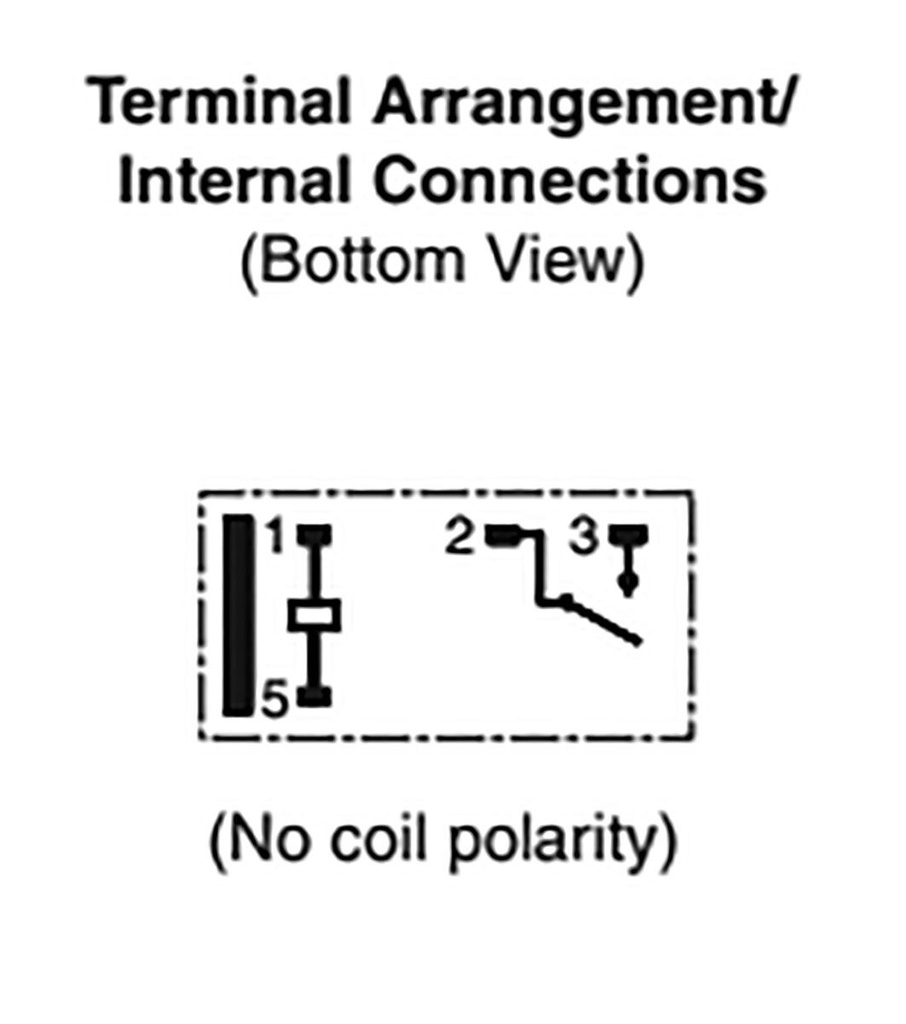

Contacts configuration | SPST-NO |
DC contacts rating @R | 5A / 30V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 5A / 250V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Relay series | G5Q |
Coil current | 8.3mA |
