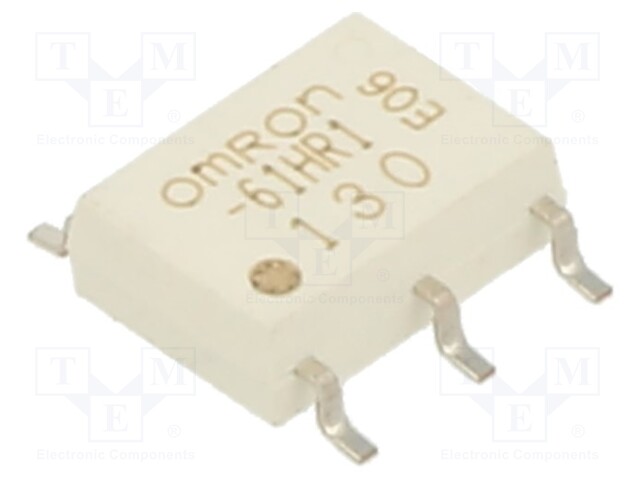

Relay: solid state; SPST-NO; 3300mA; max.60VAC; max.60VDC; SMT

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G3VM61HR1
    Manufacturer: OMRON OCB
    Manufacturer code: G3VM61HR1
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Contacts configuration
    • Relay variant
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time

    10.56 € 10.56 € (wo VAT) 10.56 EUR

    10.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; SPST-NO; 3300mA; max.60VAC; max.60VDC; SMT

    Mounting SMT
    Case SOP6
    Max. operating current 3.3A
    Operating temperature -40...85°C
    Insulation voltage 1.5kV
    Switched voltage max. 60V AC, max. 60V DC
    Contacts configuration SPST-NO
    Relay variant 1-phase, MOSFET
    Type of relay solid state
    Relay series G3VM
    Operate time 5ms
    Release time 1ms
