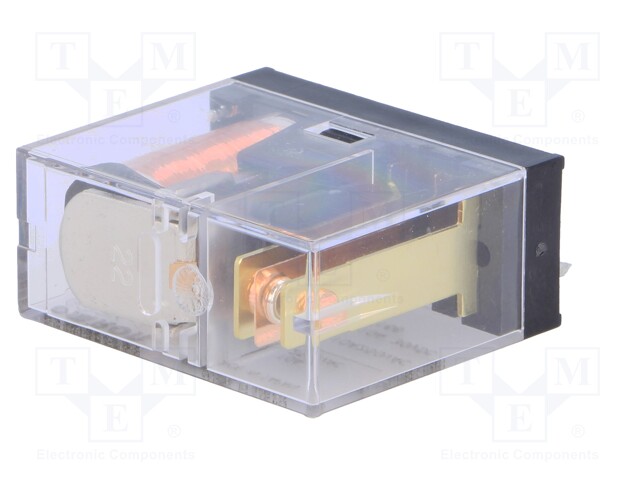

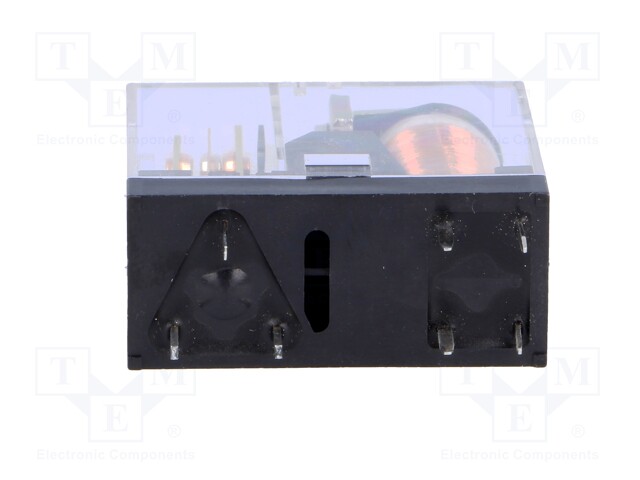

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2RK-1 24VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G2RK-1 24VDC
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Relay series
    • Coil current

    9.63 € 9.63 € (wo VAT) 9.63 EUR

    9.63 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 3.5mm
    Body dimensions 29x13x25.5mm
    Switched voltage max. 125V DC, max. 380V AC
    Coil resistance 694Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Relay series G2RK
    Coil current 34.6mA
