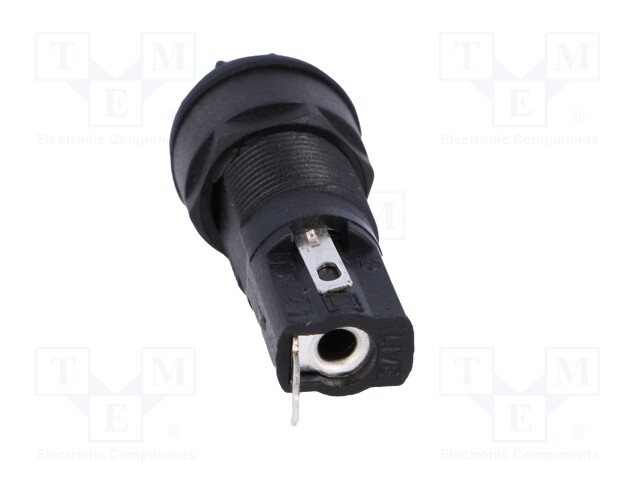

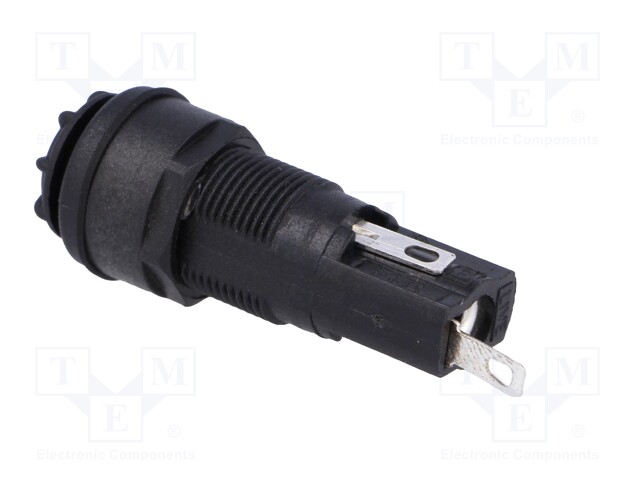

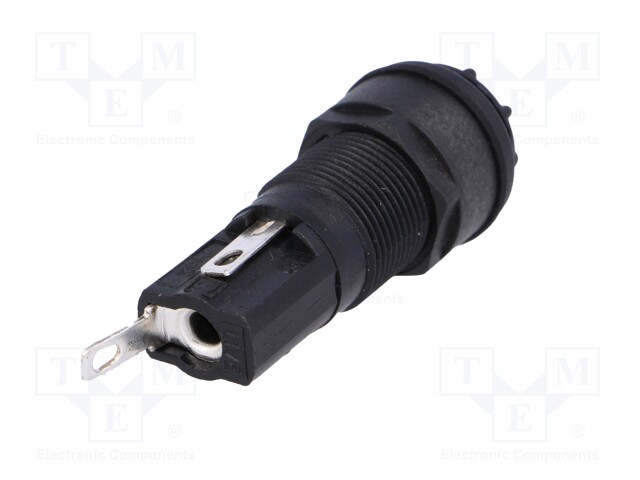

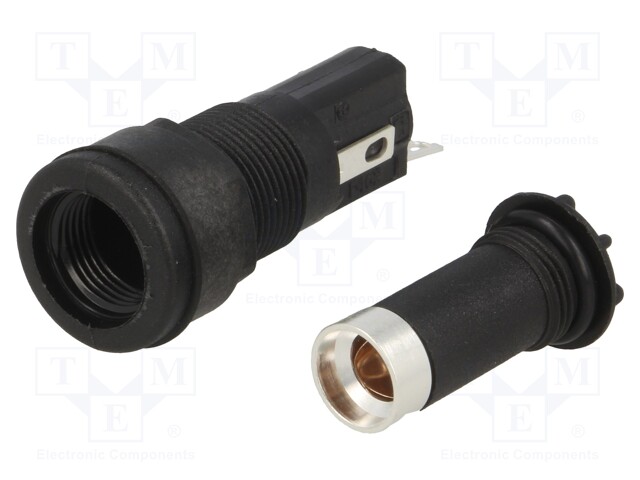

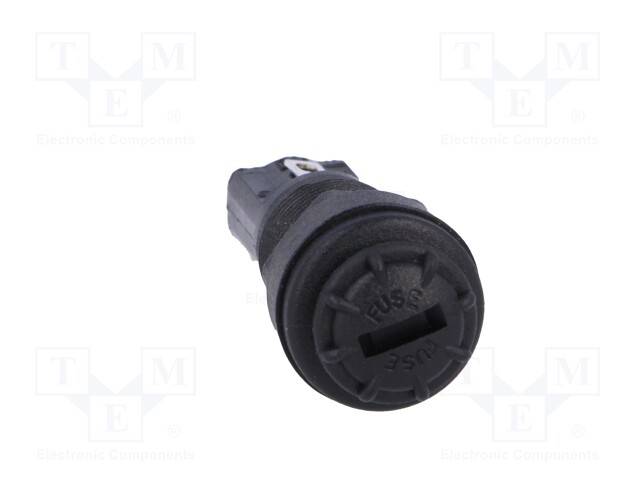

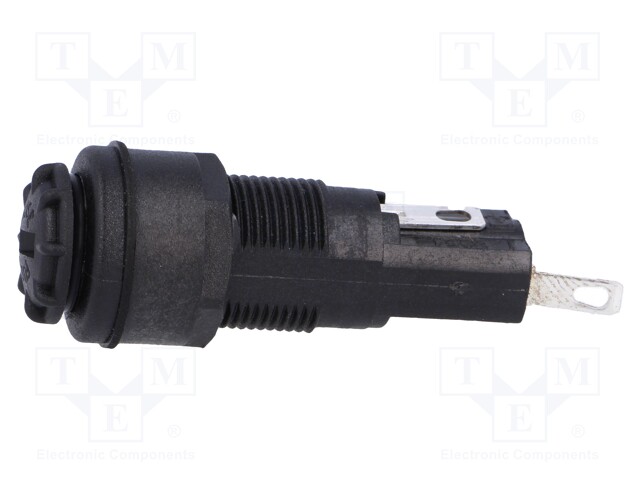

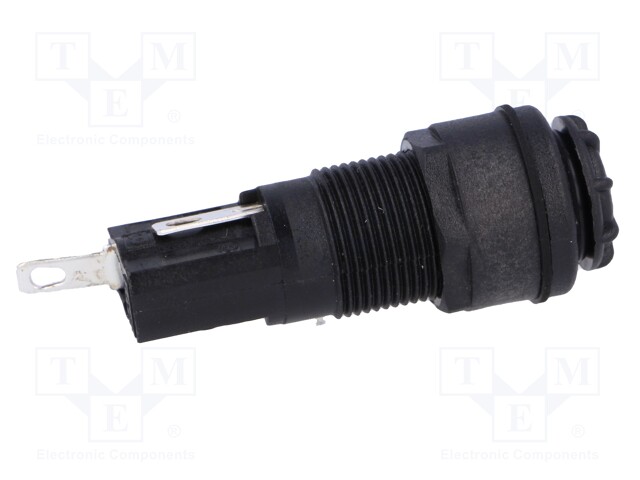

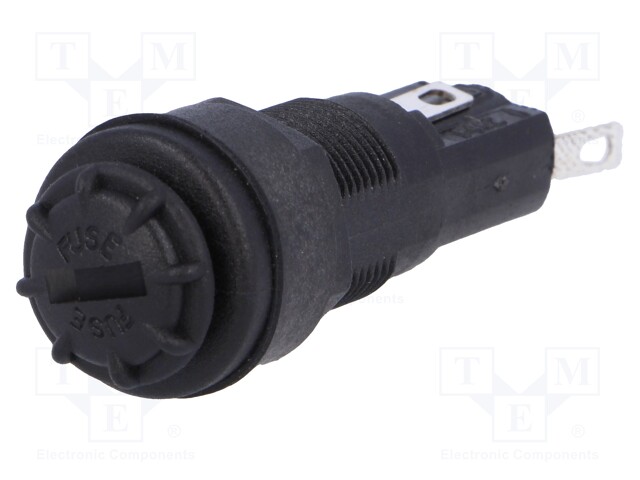

Fuse holder; cylindrical fuses; 5x20mm; 250V; Mounting: on panel

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FX0462
    Manufacturer: BULGIN
    Manufacturer code: FX0462
    • Mounting
    • Operating temperature
    • IP rating
    • Colour
    • Leads
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Max. voltage
    • Fuses application
    • Type of fuse accessories
    • Cap type
    • AC contacts rating @R

    8.66 € 8.66 € (wo VAT) 8.66 EUR

    8.66 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fuse holder; cylindrical fuses; 5x20mm; 250V; Mounting: on panel

    Mounting on panel
    Operating temperature -20...85°C
    IP rating IP68
    Colour black
    Leads for soldering
    Body material polyester
    Flammability rating UL94V-0
    Mounting hole diameter Ø12.8mm
    Body dimensions Ø15.9x41.5mm
    Panel thickness max. 8.7mm
    Max. voltage 250V
    Fuses application cylindrical fuses
    Type of fuse accessories fuse holder
    Cap type screw-in by screwdriver
    AC contacts rating @R 10A / 250V AC
