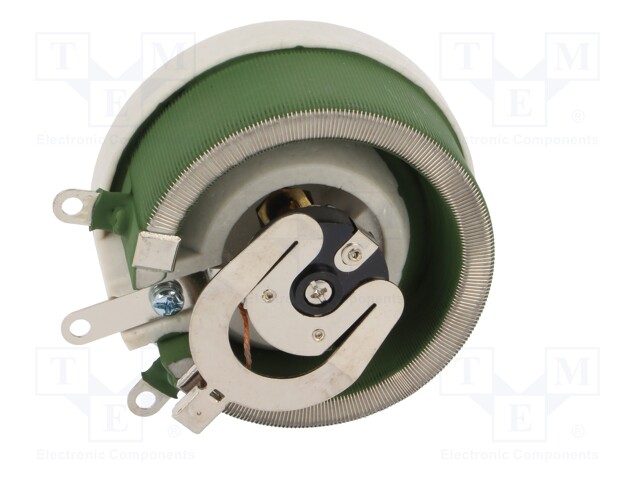

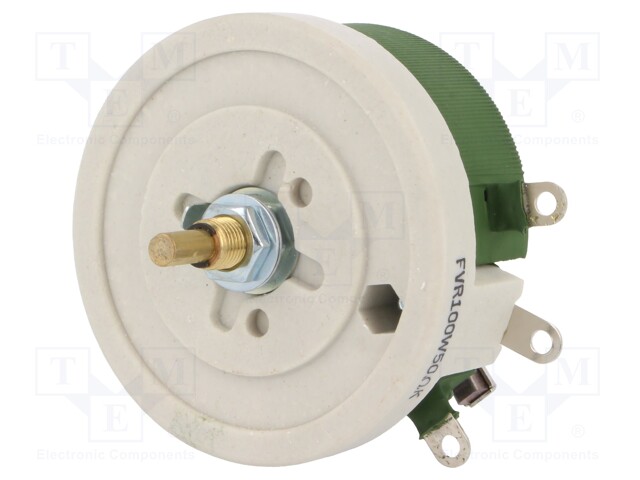

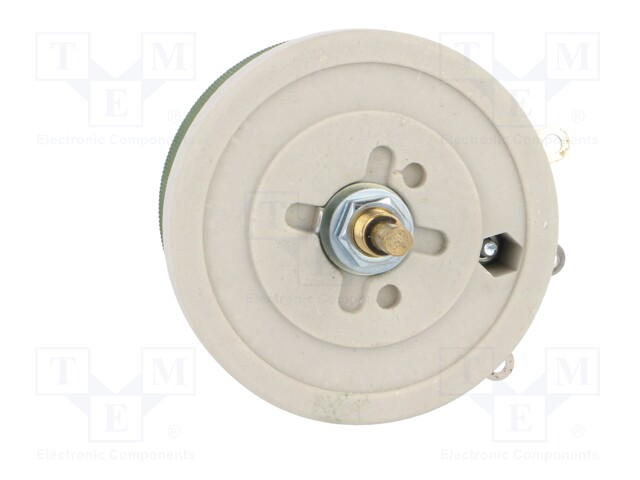

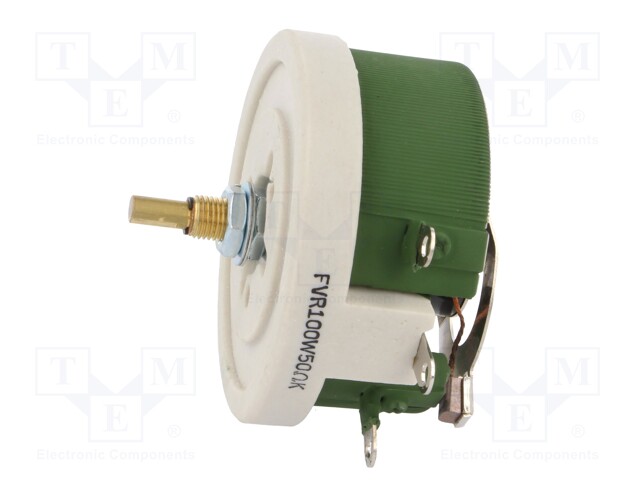

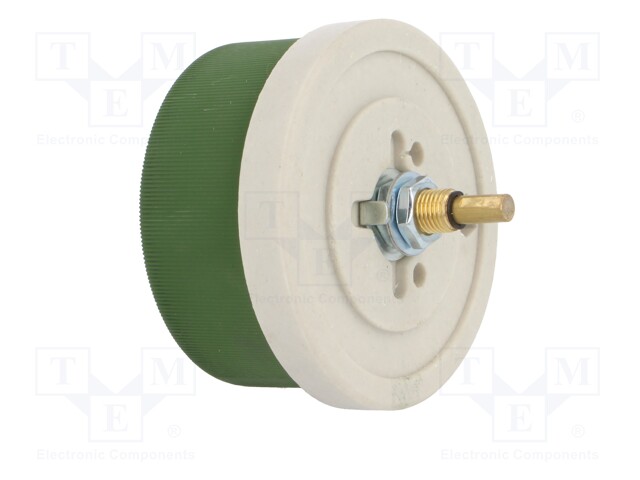

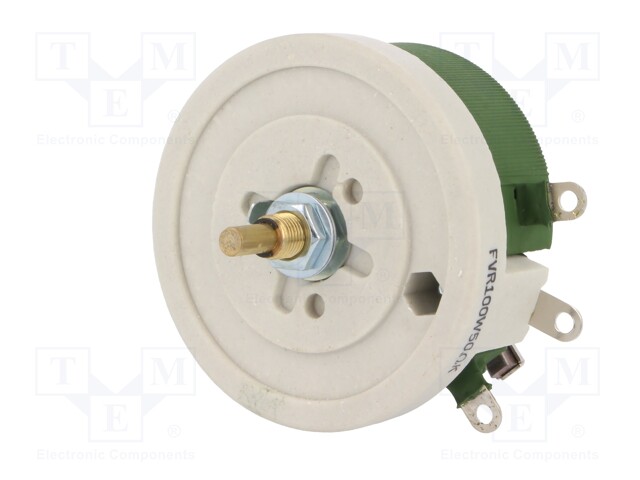

Potentiometer: shaft; single turn; 50Ω; 100W; ±10%; 6mm; wirewound

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FVR100W-50R
    Manufacturer: SR PASSIVES
    Manufacturer code: FVR100W-50R
    • Resistance
    • Tolerance
    • Fastening thread
    • Body dimensions
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics

    65.17 € 65.17 € (wo VAT) 65.17 EUR

    65.17 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 50Ω; 100W; ±10%; 6mm; wirewound

    Resistance 50Ω
    Tolerance ±10%
    Fastening thread 3/8"
    Body dimensions Ø42x85mm
    Shaft length 12mm
    Shaft diameter 6mm
    Shaft surface D spring
    Thread length 14mm
    L shaft length 26mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material wirewound
    Characteristics linear
