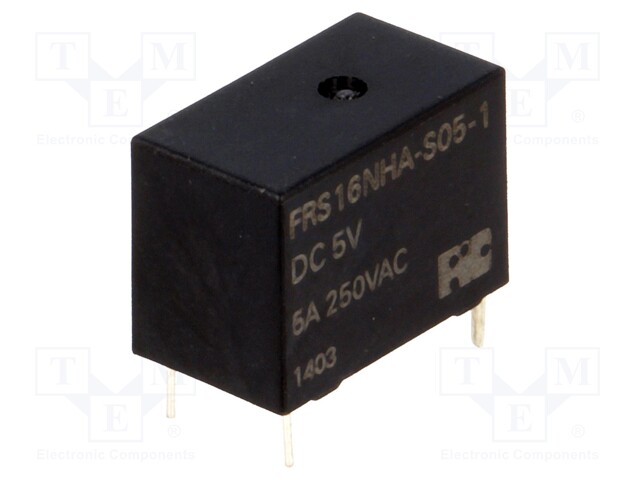

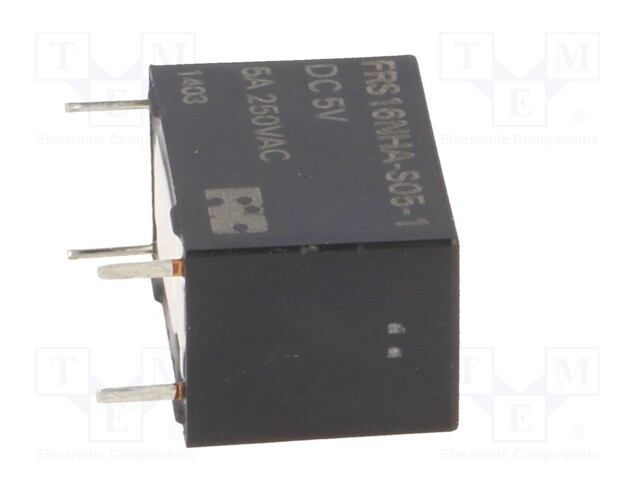

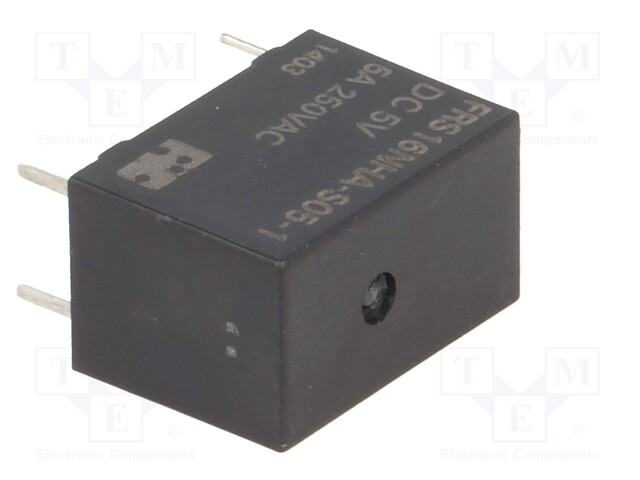

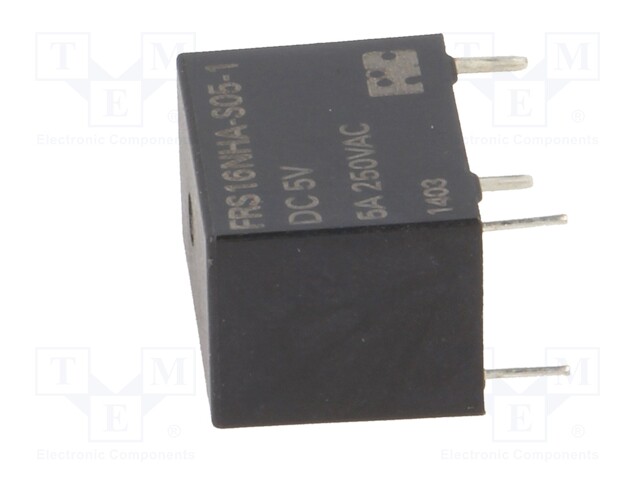

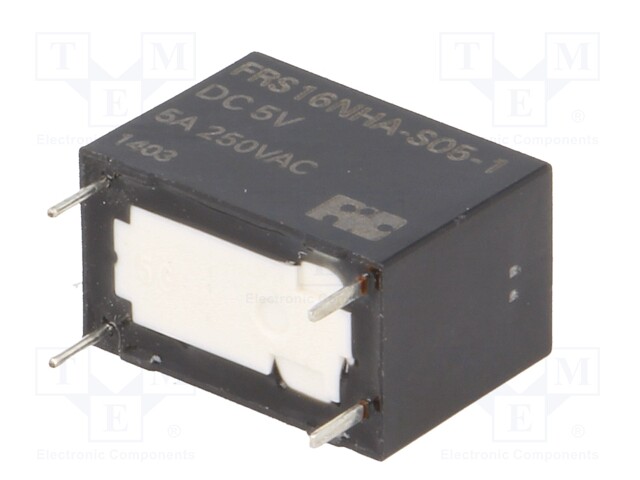

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/125VAC; 5A/30VDC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
FRS16NHA-S5-1 DC5V
Manufacturer: FORWARD INDUSTRIAL CO.
Manufacturer code: FRS16NHA-S5-1 DC5V
Product downloads
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/125VAC; 5A/30VDC
Mounting | PCB |
Operating temperature | -40...85°C |
Contact material | silver alloy |

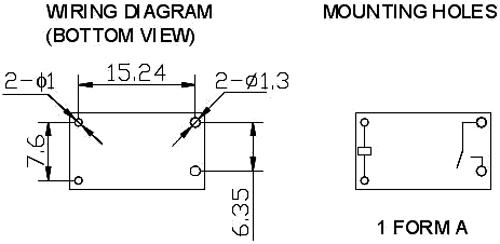

Terminal pitch | 2.5mm |

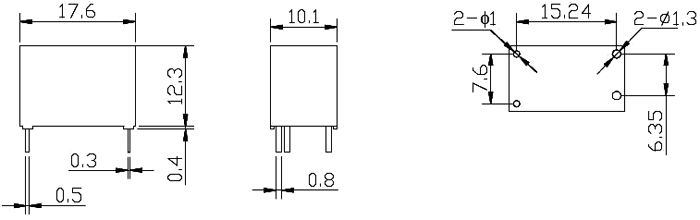

Body dimensions | 17.6x10.1x12.3mm |
Switched voltage | max. 60V DC, max. 220V AC |
Coil resistance | 125Ω |
Rated coil voltage | 5V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 5A / 30V DC |
Contact resistance | 50mΩ |
AC contacts rating @R | 5A / 125V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil voltage min. | 3.75V DC |
Coil power consumption | 200mW |
Relay series | FRS1 |
