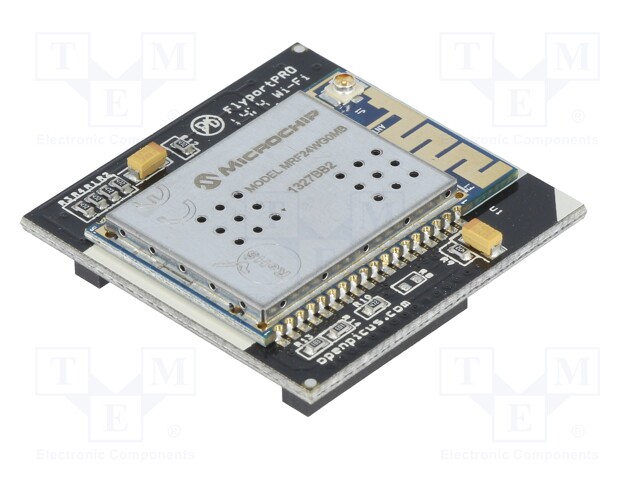

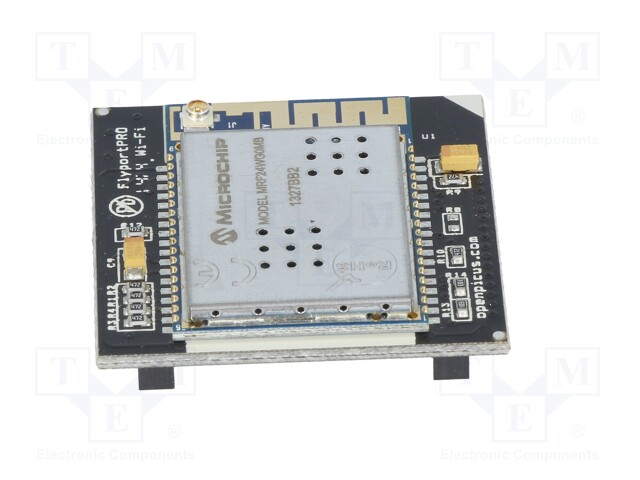

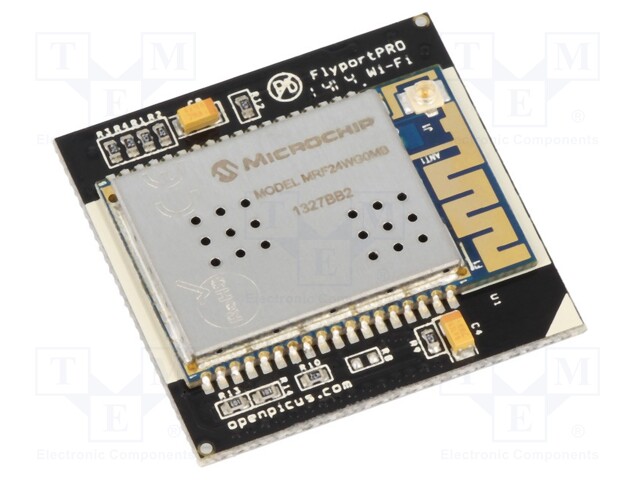

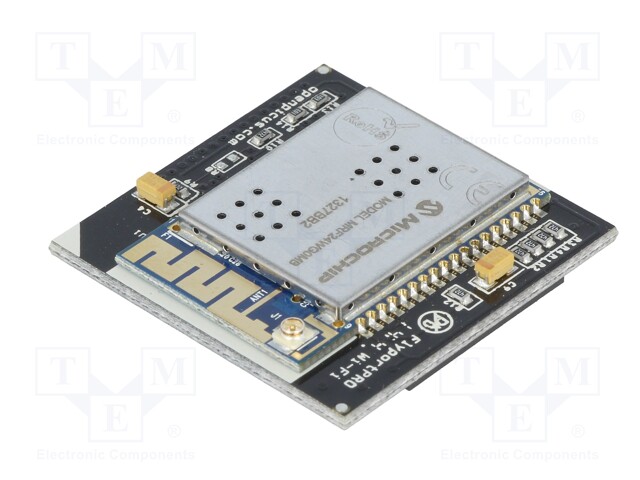

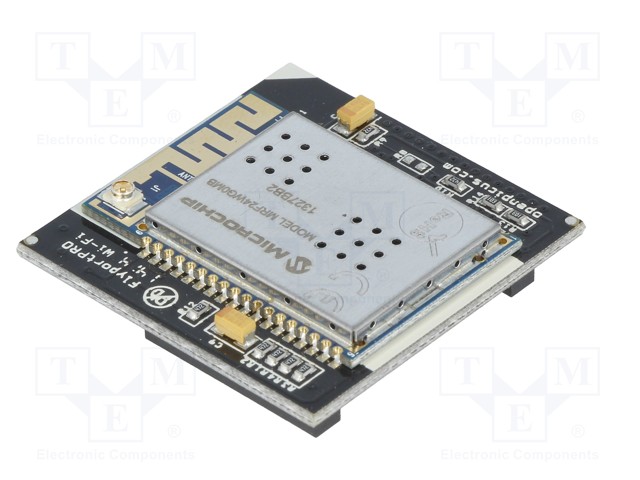

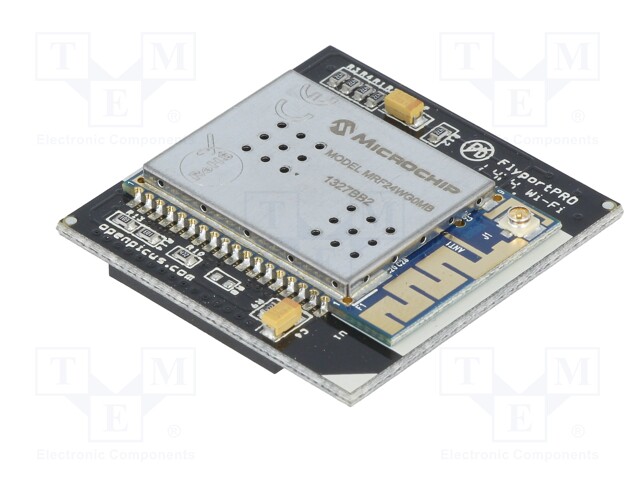

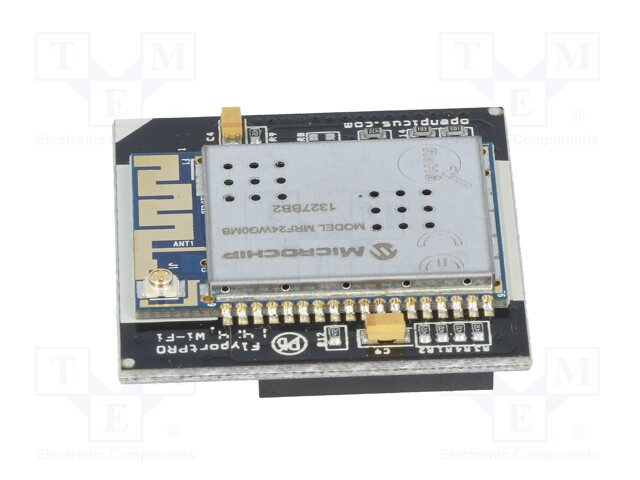

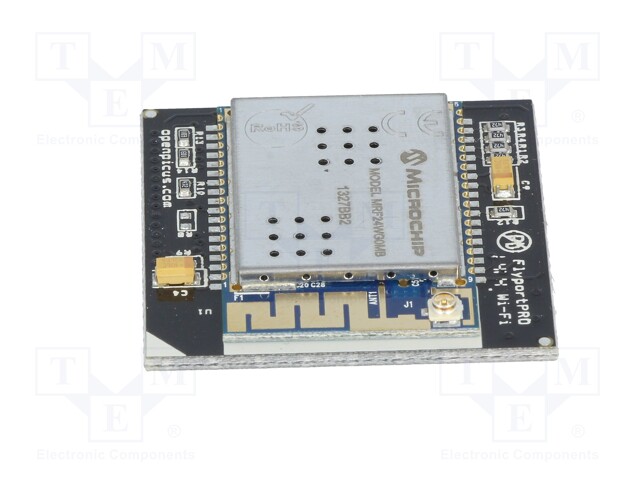

Module: WiFi; FTP,HTTP,IEEE 802.11g,SMTP,SNTP,TCP,UDP; THT
Multiples:
1.0
Minimum quantity:
1.0
Product code:
FLYPORTPRO WI-FI (UFL CONNECTOR)
Manufacturer: OPENPICUS
Manufacturer code: FLYPORTPRO WI-FI (UFL CONNECTOR)
Product downloads
Specification for Module: WiFi; FTP,HTTP,IEEE 802.11g,SMTP,SNTP,TCP,UDP; THT
Mounting | THT |
Supply voltage | 3.3V DC |
Number of inputs/outputs | 32 |
Operating temperature | -20...85°C |
Kind of connector | 2x30 pin strips |
Interface | I2C x2, PWM, SPI, UART x4, USB OTG |
Dimensions | 34x34x9mm |
Associated circuits | MRF24WG0MA, PIC24FJ256GB206 |
Ciphering | AES128 |
Type of communications module | WiFi |
Communictions protocol | FTP, HTTP, IEEE 802.11g, SMTP, SNTP, TCP, UDP |
Communications modules features | 32kHz quartz, antenna connector |
Receiver sensitivity | -95dBm |
Transmitter output power | 16dBm |
Supply current range | 0.18...150mA |
