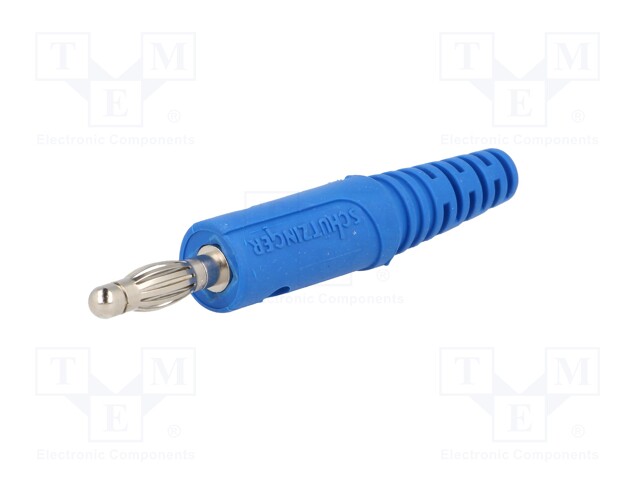

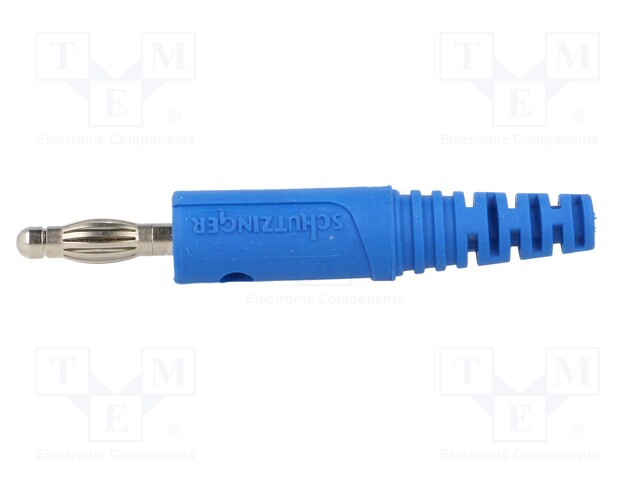

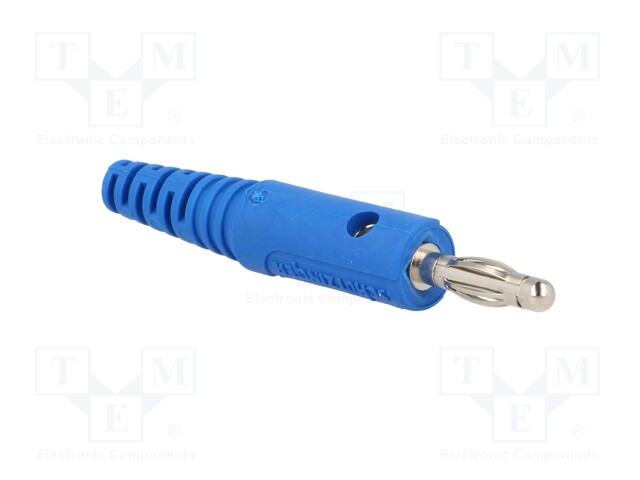

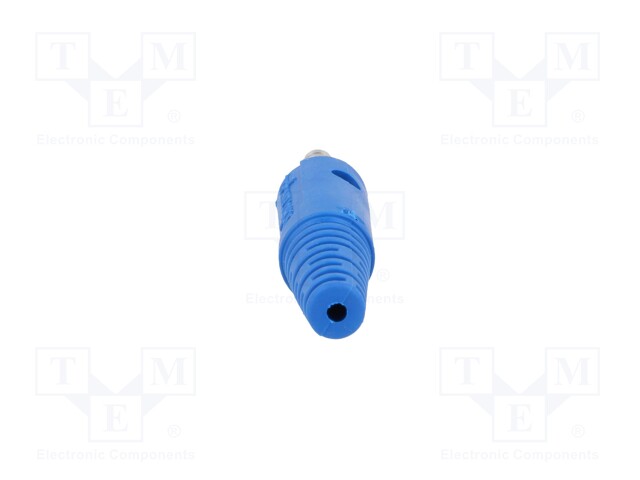

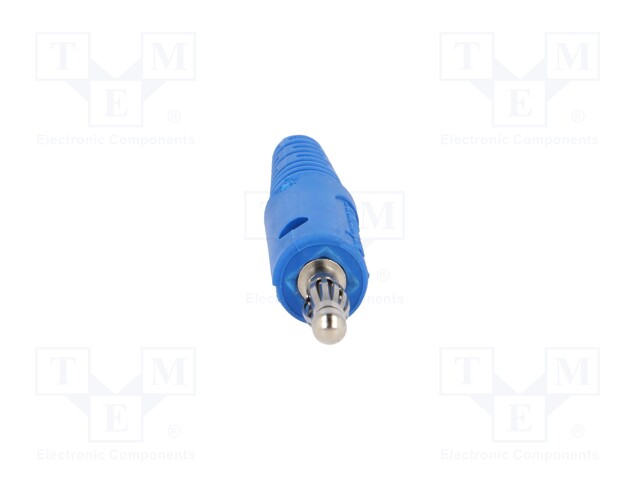

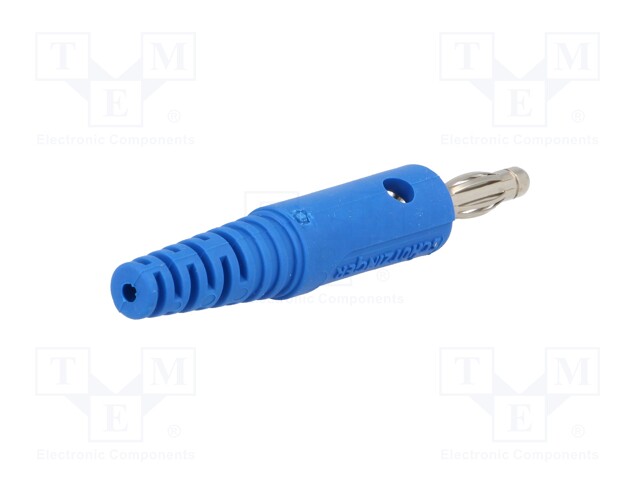

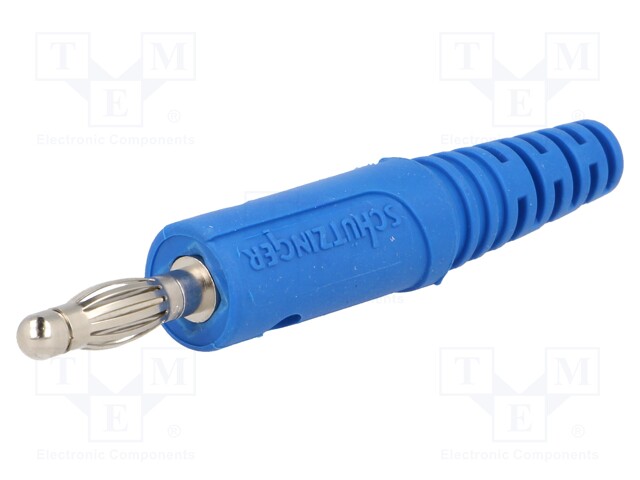

Plug; 4mm banana; 10A; 60VDC; blue; with transversal socket

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FK 82 S NI / BL
    Manufacturer: SCHÜTZINGER
    Manufacturer code: FK 82 S NI / BL
    • Mounting
    • Operating temperature
    • Connector
    • Colour
    • Contact plating
    • Type of connector
    • Current rating
    • Rated voltage
    • Rated voltage
    • Connector variant
    • Connector variant
    • Overall length
    • Max. wire diameter
    • Connection

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Plug; 4mm banana; 10A; 60VDC; blue; with transversal socket

    Mounting on cable
    Operating temperature -30...110°C
    Connector plug
    Colour blue
    Contact plating nickel plated
    Type of connector 4mm banana
    Current rating 10A
    Rated voltage 33V AC, 70V DC
    Connector variant non-insulated, with 4mm transversal socket

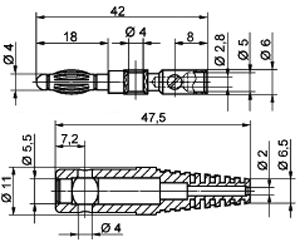

    Overall length 65.5mm
    Max. wire diameter 2mm
    Connection screwed
