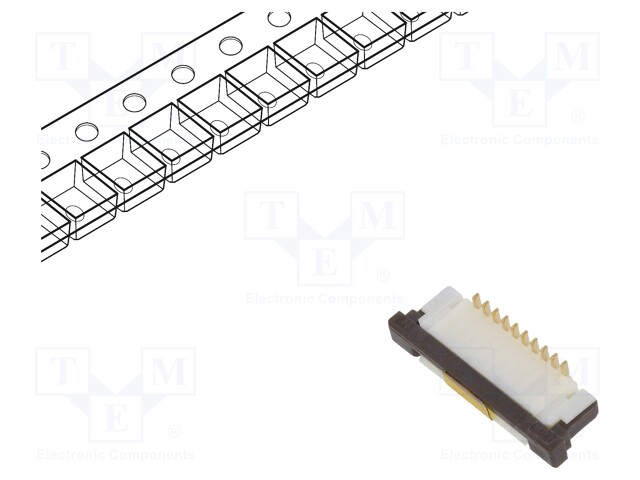

Connector: FFC (FPC); vertical; PIN: 10; ZIF; SMT; 125V; 1A; -25÷85°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FFC3A20-10-G
    Manufacturer: Global Connector Technology (GCT)
    Manufacturer code: FFC3A20-10-G
    • Operating temperature
    • Kind of package
    • Electrical mounting
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Flammability rating
    • Maximum current
    • Height
    • Quantity in package
    • Rated voltage
    • Ribbon cable pitch
    • Connector variant
    • Spatial orientation

    0.78 € 0.78 € (wo VAT) 0.78 EUR

    0.78 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: FFC (FPC); vertical; PIN: 10; ZIF; SMT; 125V; 1A; -25÷85°C

    Operating temperature -25...85°C
    Kind of package cut from reel
    Electrical mounting SMT
    Contact plating gold flash
    Type of connector FFC (FPC)
    Number of pins 10
    Contact material phosphor bronze
    Flammability rating UL94V-0
    Maximum current 1A
    Height 5.5mm
    Quantity in package 1500pcs.
    Rated voltage 125V
    Ribbon cable pitch 1mm
    Connector variant ZIF
    Spatial orientation vertical
