Relay: electromagnetic; 1 Form U; Ucoil: 12VDC; 30A; Series: FBR53

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FBR53ND12-Y
    Manufacturer: FUJITSU
    Manufacturer code: FBR53ND12-Y
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    2.51 € 2.51 € (wo VAT) 2.5100000000000002 EUR

    2.51 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 1 Form U; Ucoil: 12VDC; 30A; Series: FBR53

    Mounting PCB
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

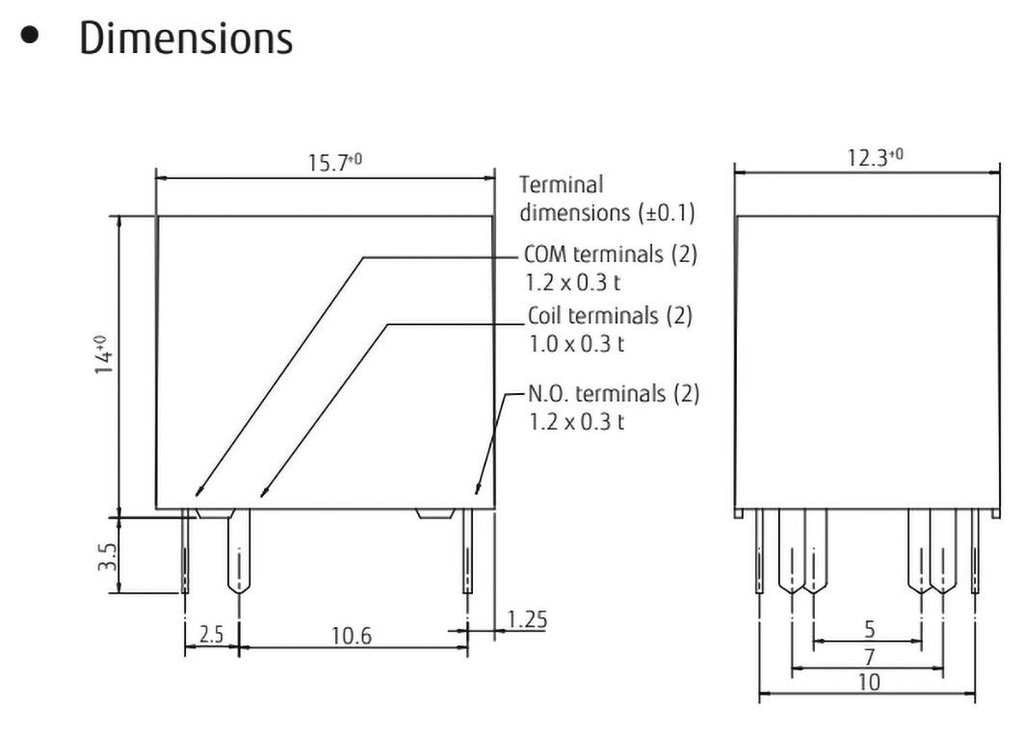

    Body dimensions 15.7x12.3x14mm
    Switched voltage max. 16V DC
    Coil resistance 240Ω
    Rated coil voltage 12V DC

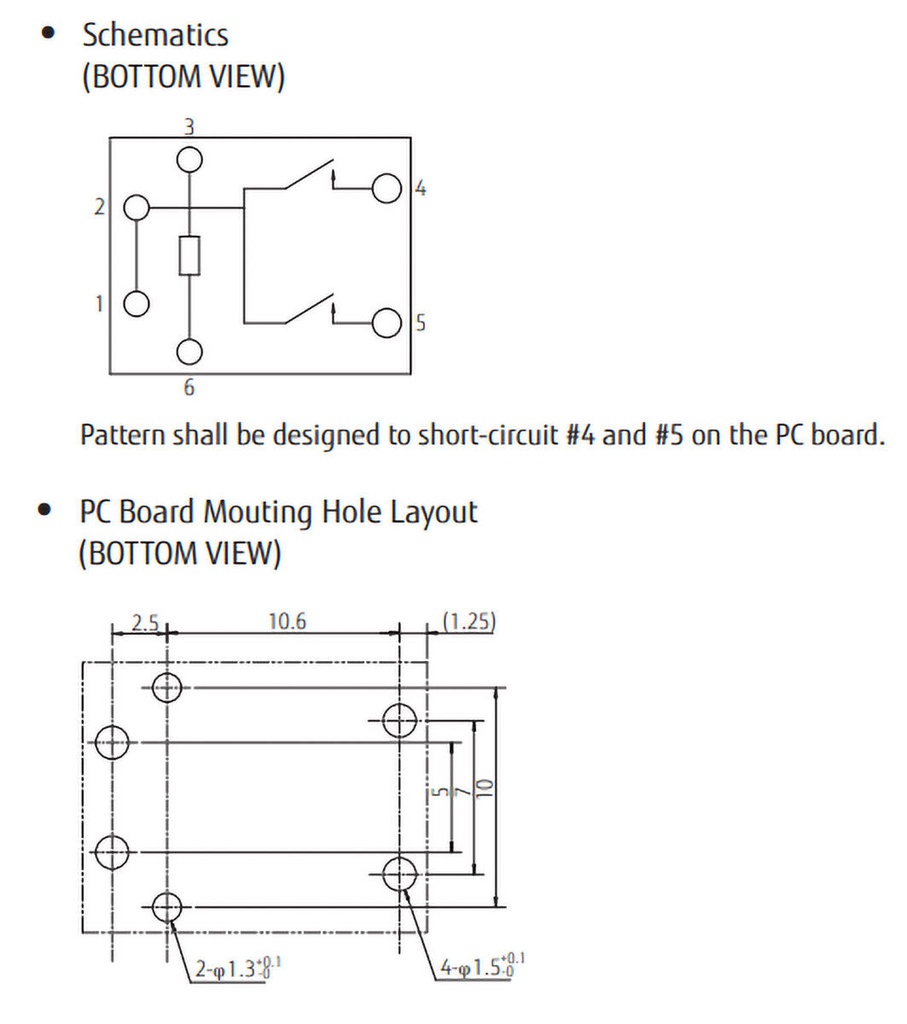

    Contacts configuration 1 Form U
    DC contacts rating @R 25A / 14V DC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.6W
    Relay series FBR53
