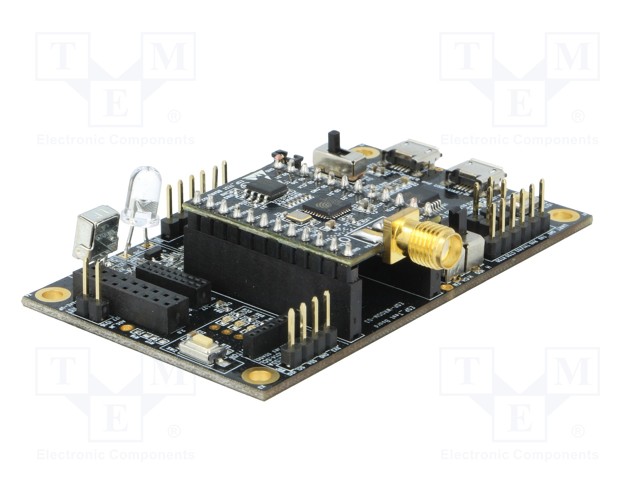

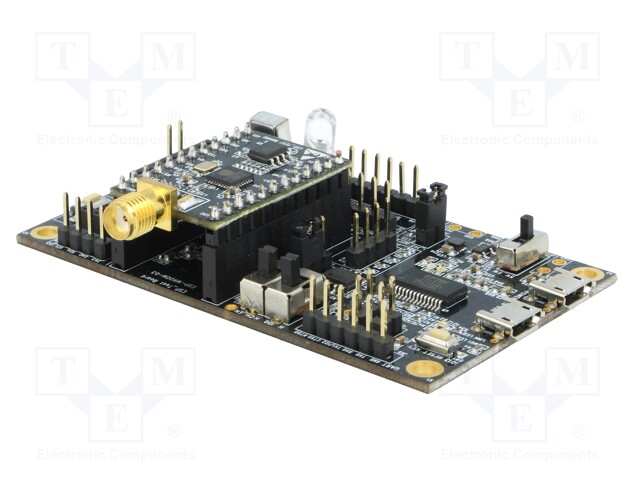

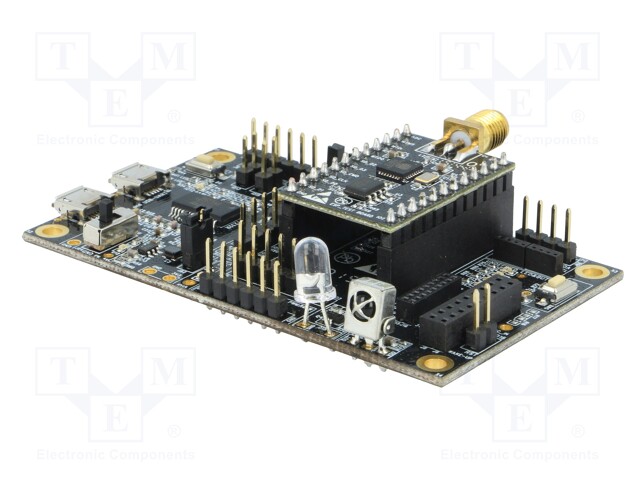

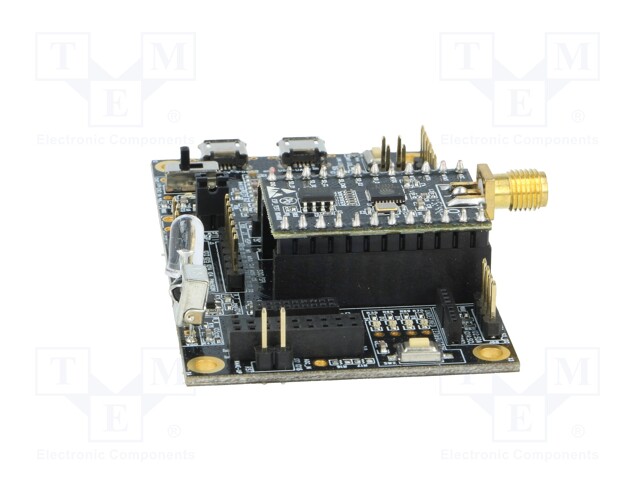

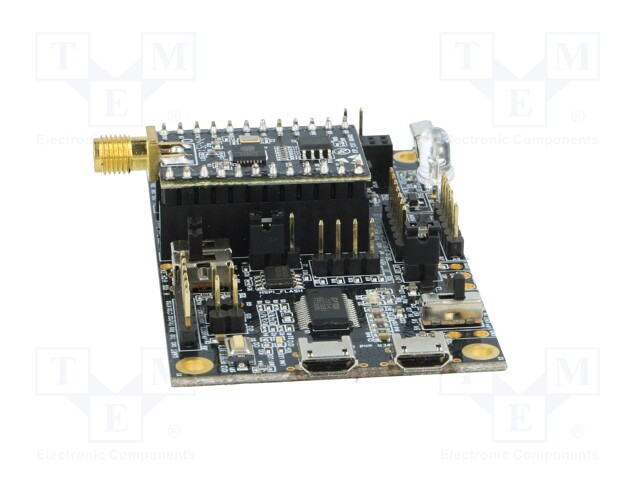

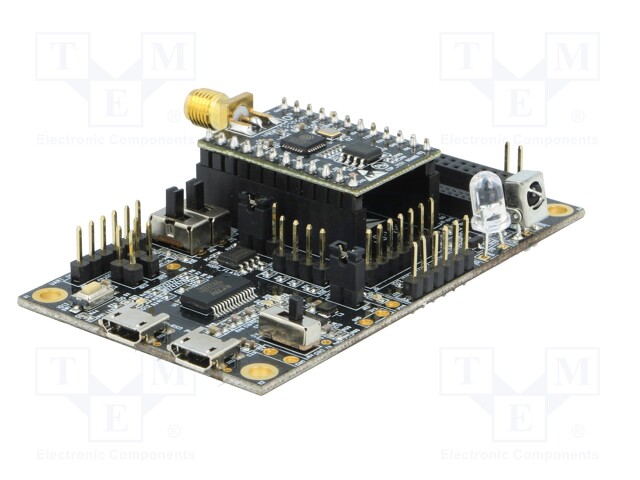

Dev.kit: WiFi; A/D,I2C,IR,PWM,SDIO,SPI,UART,USB; ESP8266; 20dBm
Multiples:
1.0
Minimum quantity:
1.0
Product code:
ESP-LAUNCHER
Manufacturer: ESPRESSIF
Manufacturer code: ESP-LAUNCHER
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDDBDAFD16EFED320D5&compId=Company%20Brochure_EN%20V1.6_Compressed.pdf?ci_sign=9c59c9c26e2f99a88a873d0c87455b47ff253d98
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDFA48D1C148081C0D6&compId=ESD%20Customer%20Service.txt?ci_sign=3268072bd7a58e9047ff598dac2a1cb8c9585688
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED5AEF2B022FDB6D1BF&compId=ESP-LAUNCHER.pdf?ci_sign=07eb60a2c5bc5db122c64fe2575afd19dbee81eb
Specification for Dev.kit: WiFi; A/D,I2C,IR,PWM,SDIO,SPI,UART,USB; ESP8266; 20dBm
| Supply voltage | 3.3...5V DC |
| Kind of connector | pin strips, SMA, USB B micro x2 |
| Interface | A/D, I2C, IR, PWM, SDIO, SPI, UART, USB |

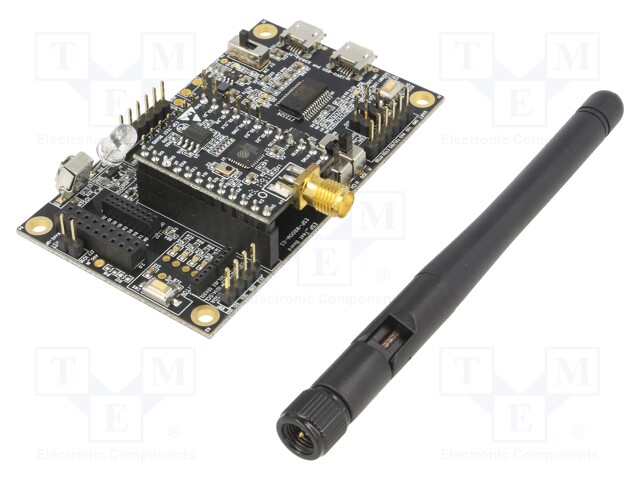

| Kit contents | prototype board, WiFi module, antenna |
| Type of development kit | WiFi |
| Programmers and development kits features | I/O lines on pin header |
| Components | ESP8266 |
| Ciphering | AES, WPA, WPA2, WPS |
| Communictions protocol | FTP, HTTP, IPv4, TCP, UDP |
| Receiver sensitivity | b: -91 dBm, g: -75 dBm, n: -72 dBm |
| TX/RX supply current | 170/56mA |
| Transmitter output power | 20dBm |
