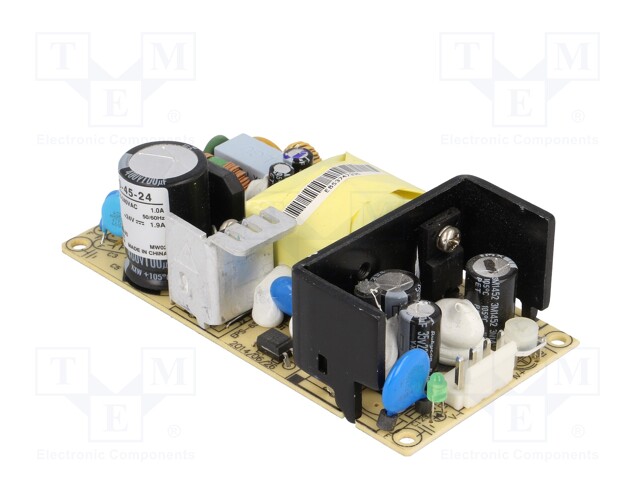

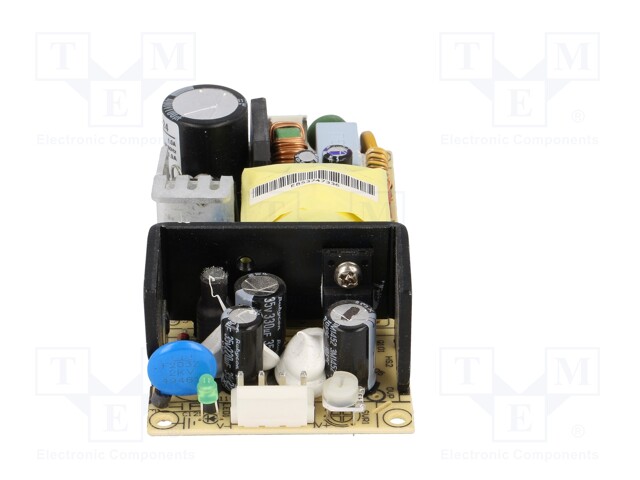

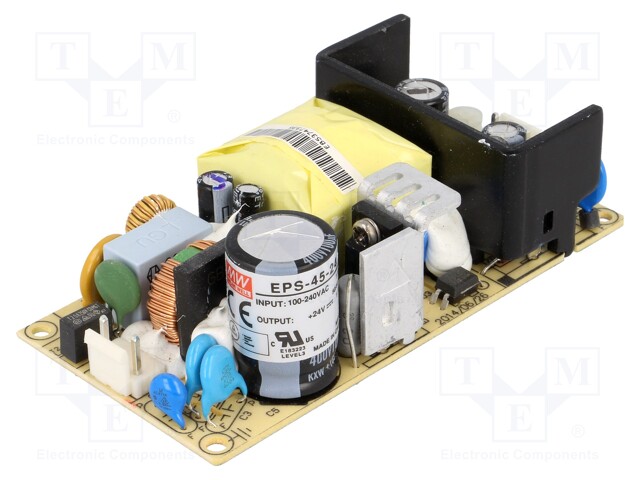

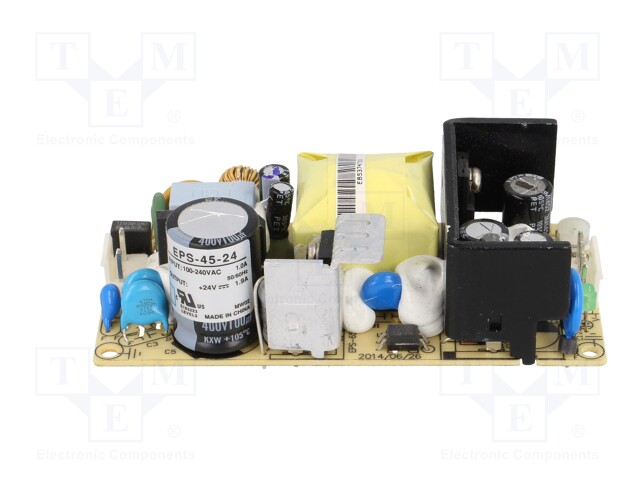

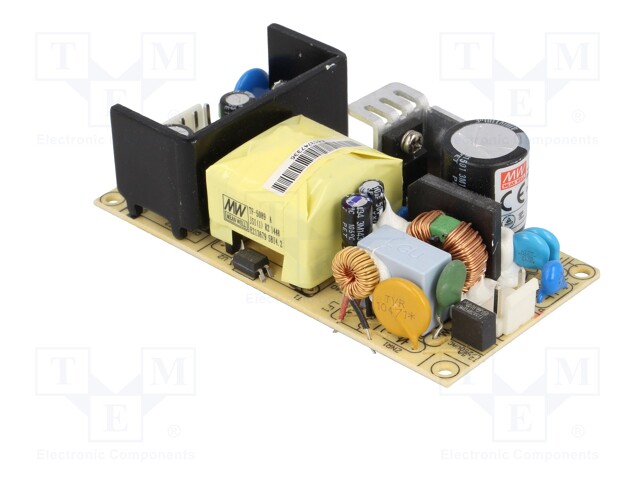

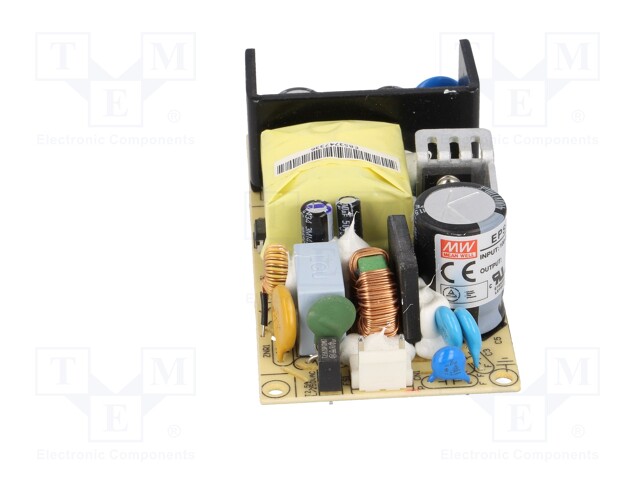

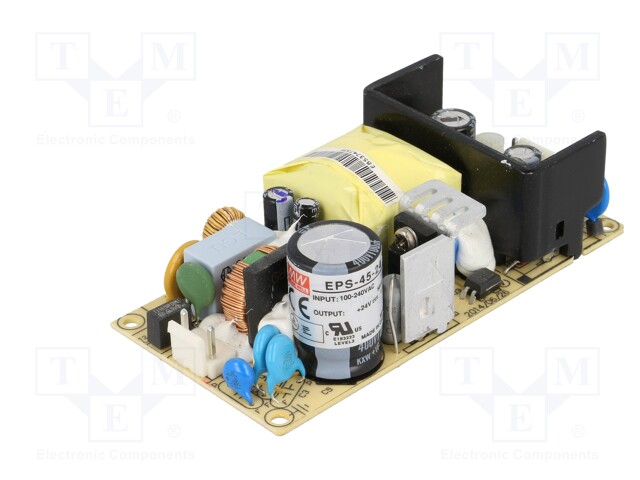

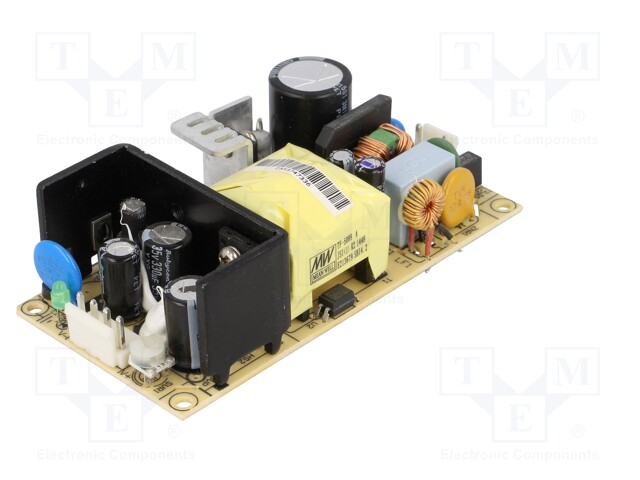

Power supply: switched-mode; 45.6W; 120÷370VDC; 85÷264VAC; OUT: 1

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EPS-45-24
    Manufacturer: MEAN WELL
    Manufacturer code: EPS-45-24
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Kind of power supply

    15.96 € 15.96 € (wo VAT) 15.96 EUR

    15.96 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 45.6W; 120÷370VDC; 85÷264VAC; OUT: 1

    Output current 1.9A
    Supply voltage 85...264V AC, 120...370V DC
    Power 45.6W
    Operating temperature -30...70°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series EPS-45
    Body dimensions 101.6x50.8x29mm
    Output voltage 24V DC
    Efficiency 89%
    Number of outputs 1
    Electrical connection plug with 3,96mm pitch
    Kind of power supply open
