Power supply: switched-mode; 75W; 127÷370VDC; 90÷264VAC; OUT: 1
Multiples:
1.0
Minimum quantity:
1.0
Product code:
ELP-75-24-C
Manufacturer: MEAN WELL
Manufacturer code: ELP-75-24-C
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE4B2917BC1F7F52469&compId=ELP-75-SPEC.pdf?ci_sign=03be8cdd5b8f3c1a4f6e990e3d88bad102c3fd4a
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69CA033D50E462FA8&compId=INB-MN-PCB-EN.pdf?ci_sign=4e5a9b6cf17e89160a630d6ea826c0c42c232ea3
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Power supply: switched-mode; 75W; 127÷370VDC; 90÷264VAC; OUT: 1
| Output current | 3.15A |
| Supply voltage | 90...264V AC, 127...370V DC |
| Power | 75W |
| Operating temperature | -30...70°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | ELP-75 |

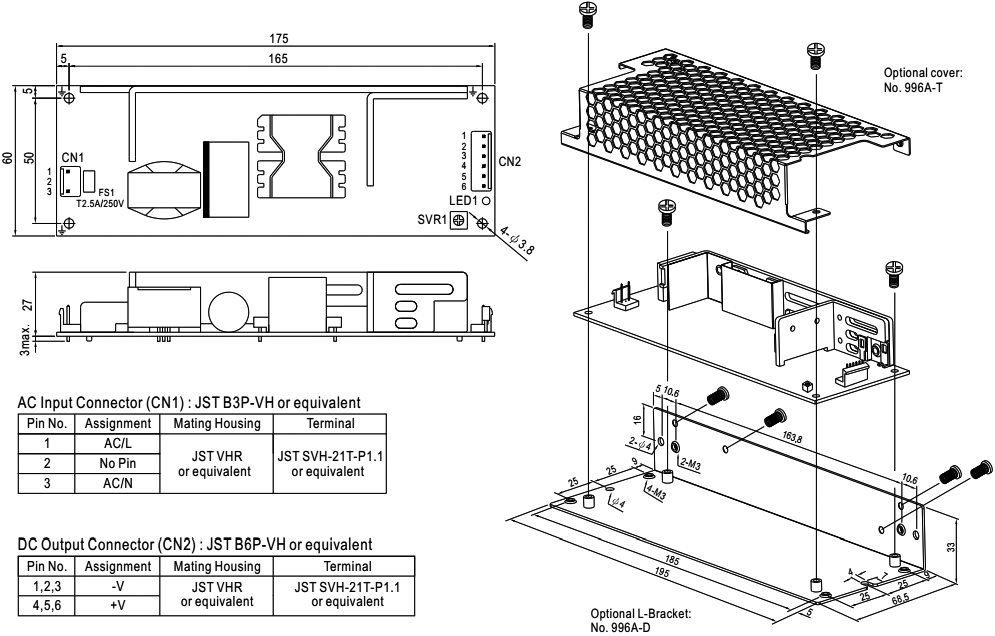

| Body dimensions | 195x68.5x33mm |
| Output voltage | 24V DC |
| Additional functions | active PFC |
| Efficiency | 90% |
| Number of outputs | 1 |
| Electrical connection | plug with 3,96mm pitch |
| Kind of power supply | open |
