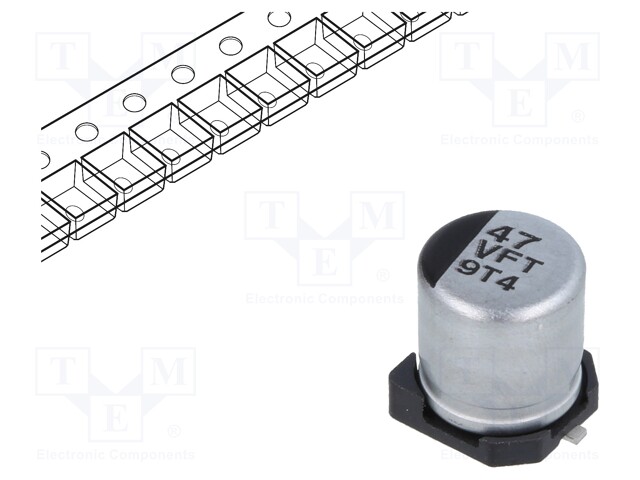

Capacitor: electrolytic; low impedance; 47uF; 35VDC; Case: C; FT

    Multiples: 10.0
    Minimum quantity: 10.0
    Product code: EEEFT1V470AR
    Manufacturer: PANASONIC
    Manufacturer code: EEEFT1V470AR
    • Mounting
    • Case
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Impedance
    • Body dimensions
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitors series
    • Conform to the norm
    • Capacitors features
    • Service life

    0.44 € 0.44 € (wo VAT) 0.44 EUR

    0.44 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: electrolytic; low impedance; 47uF; 35VDC; Case: C; FT

    Mounting SMD
    Case C
    Operating voltage 35V DC
    Operating temperature -55...105°C
    Tolerance ±20%
    Impedance 360mΩ
    Body dimensions Ø5x5.8mm
    Capacitance 47µF
    Kind of capacitor low ESR
    Type of capacitor electrolytic
    Capacitors series FT
    Conform to the norm AEC-Q200
    Capacitors features high temperature reflow
    Service life 2000h
