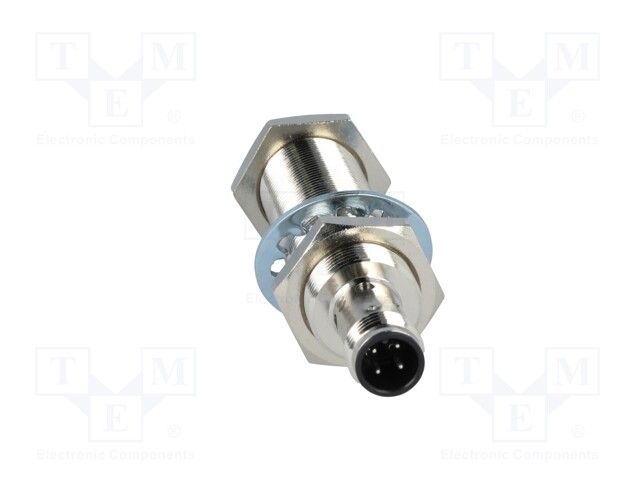

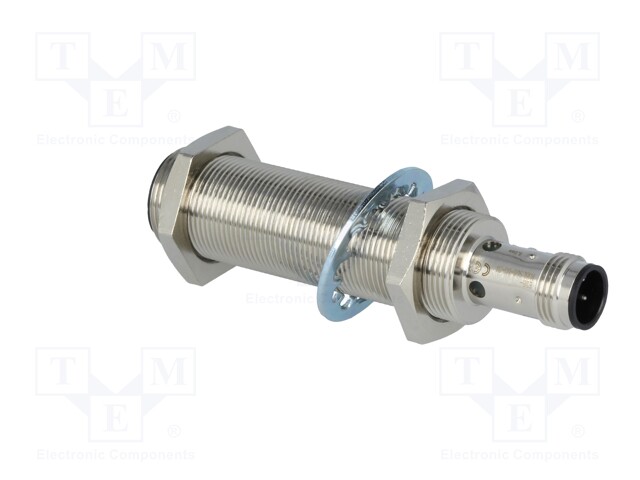

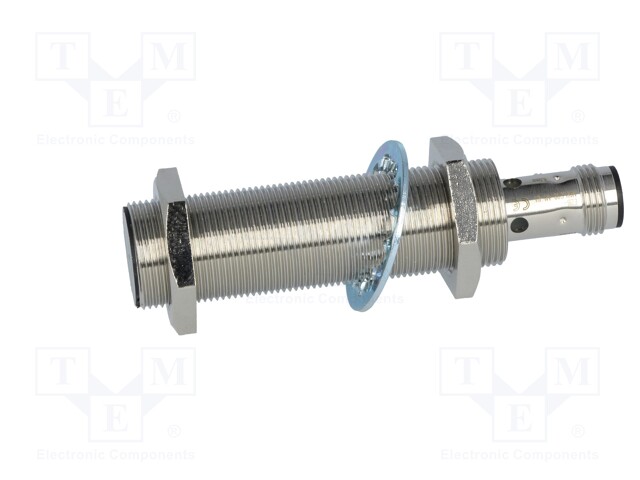

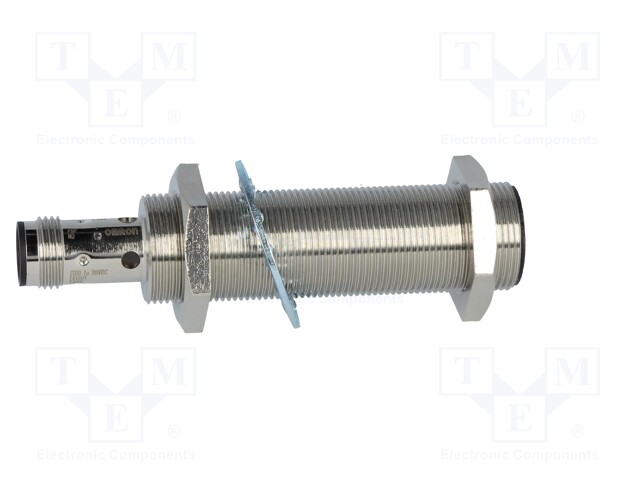

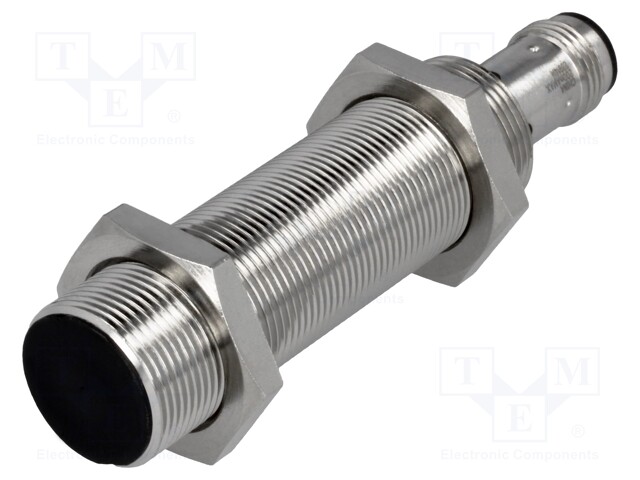

Sensor: inductive; Output conf: PNP / NO; 0÷8mm; 10÷30VDC; M18

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: E2B-M18LS08-M1-B1
    Manufacturer: OMRON
    Manufacturer code: E2B-M18LS08-M1-B1
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Overall length
    • Body plating
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    39.77 € 39.77 € (wo VAT) 39.77 EUR

    39.77 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: inductive; Output conf: PNP / NO; 0÷8mm; 10÷30VDC; M18

    Supply voltage 10...30V DC
    Operating temperature -25...70°C
    IP rating IP67
    Number of pins 4
    Body material brass
    Range 0...8mm
    Output configuration PNP / NO
    Overall length 81mm
    Body plating nickel
    Type of sensor inductive
    Connection connector M12
    Switch housing M18
    Switching frequency max 500Hz
    Kind of forehead embedded
