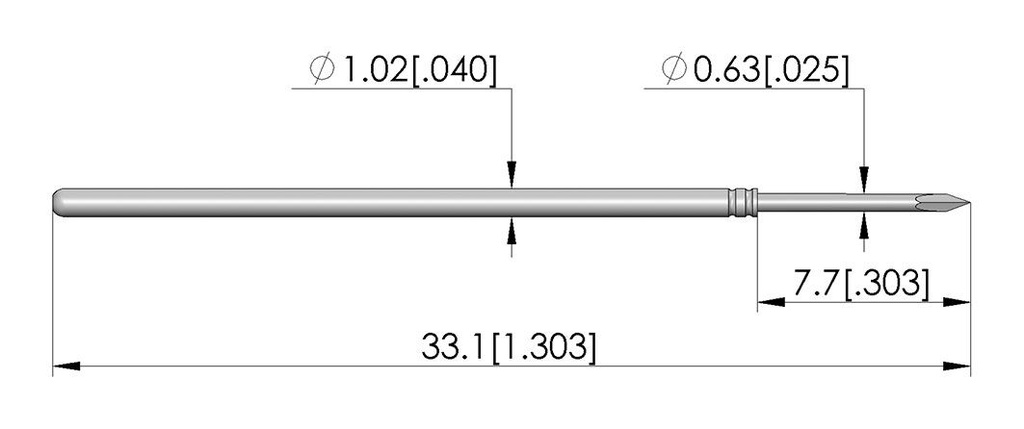

Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.64mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: E-075 291 064 A 2000
    Manufacturer: INGUN
    Manufacturer code: E-075 291 064 A 2000
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Type of test accessories
    • Maksimum spring compression
    • Blade tip shape

    4.22 € 4.22 € (wo VAT) 4.22 EUR

    4.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.64mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance: 20mΩ
    Current rating 3A
    Type of test accessories test probe
    Maksimum spring compression 6.35mm

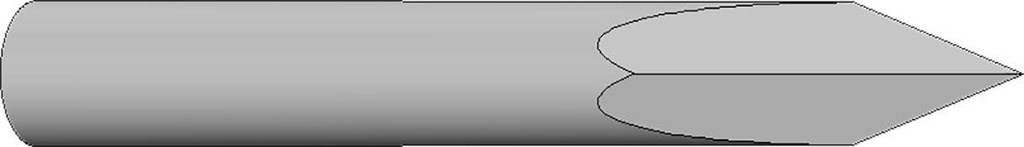

    Blade tip shape sharp
