Vibration damper; M8; Ø: 30mm; rubber; L: 25mm; Thread len: 23mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DVC.2-30-18-25-M8-20-55
    Manufacturer: ELESA+GANTER
    Manufacturer code: DVC.2-30-18-25-M8-20-55
    • Body material
    • Diameter
    • Thread
    • D1 dimension
    • H dimension
    • Spacer length
    • Static load
    • Thread length
    • Type of mounting element
    • Mechanical elements features
    • Shore hardness
    • Plunger material
    • Stiffness

    4.32 € 4.32 € (wo VAT) 4.32 EUR

    4.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

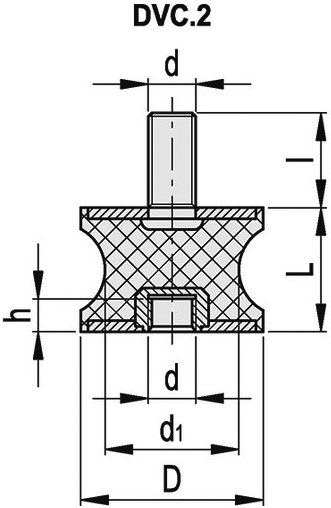

    Specification for Vibration damper; M8; Ø: 30mm; rubber; L: 25mm; Thread len: 23mm

    Body material rubber
    Diameter 30mm
    Thread M8
    D1 dimension 18mm
    H dimension 8mm
    Spacer length 25mm
    Static load 510N
    Thread length 23mm
    Type of mounting element vibration damper
    Mechanical elements features with internal and external thread
    Shore hardness 55±5
    Plunger material zinc plated steel
    Stiffness 82N/mm
