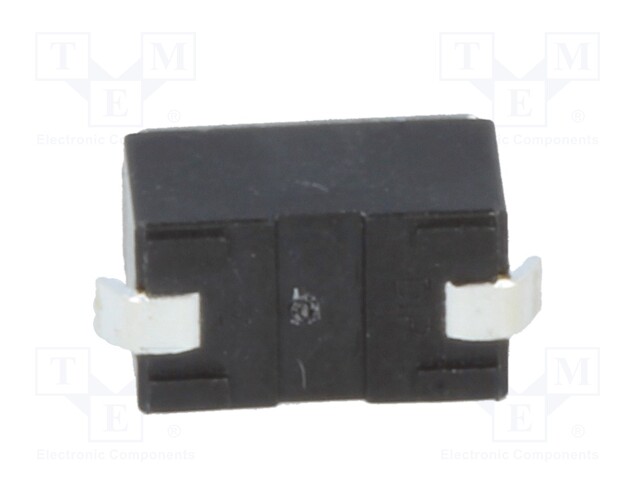

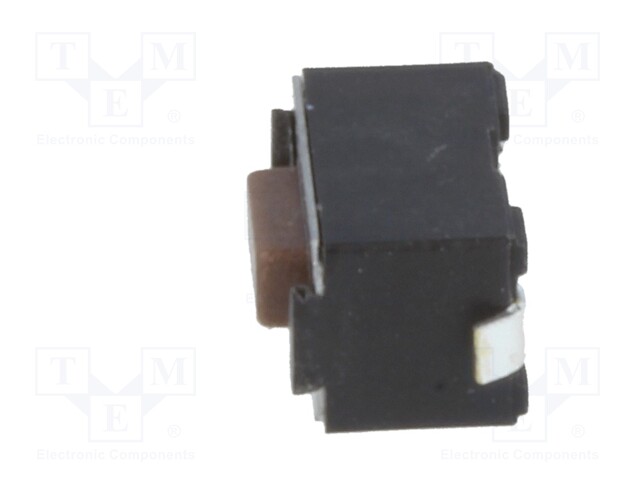

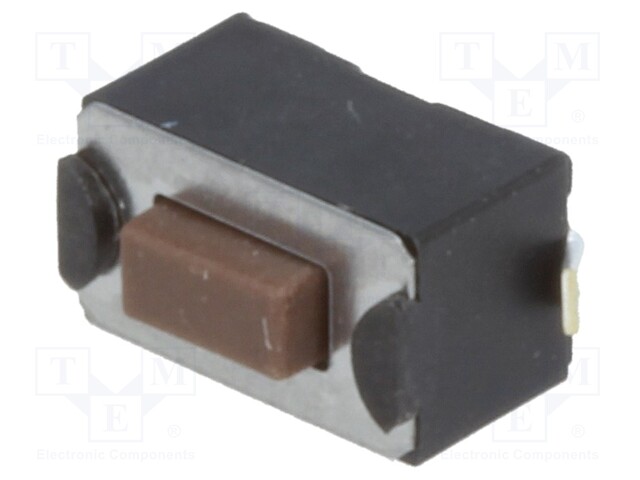

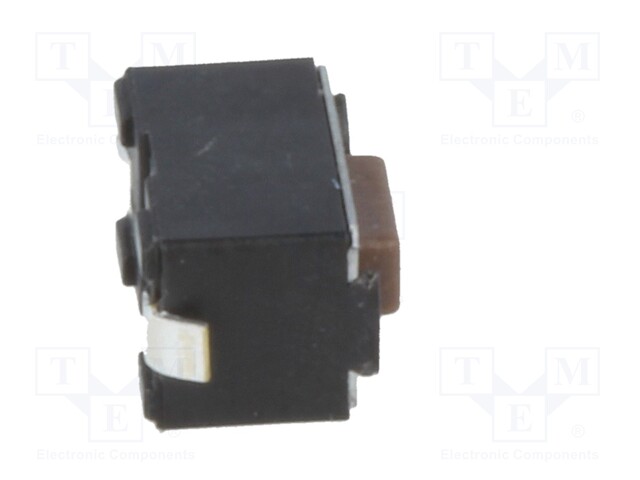

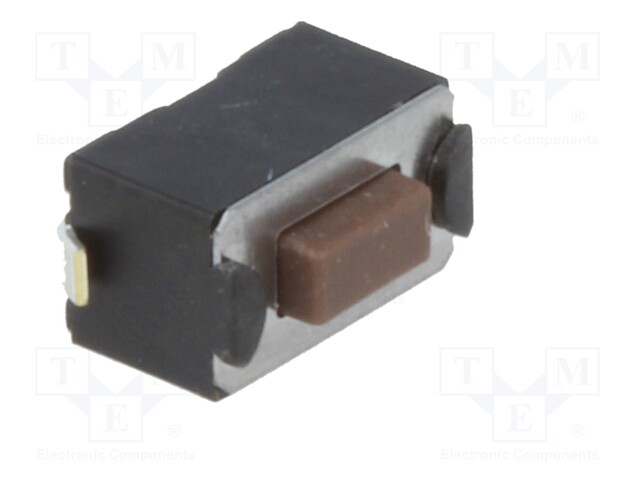

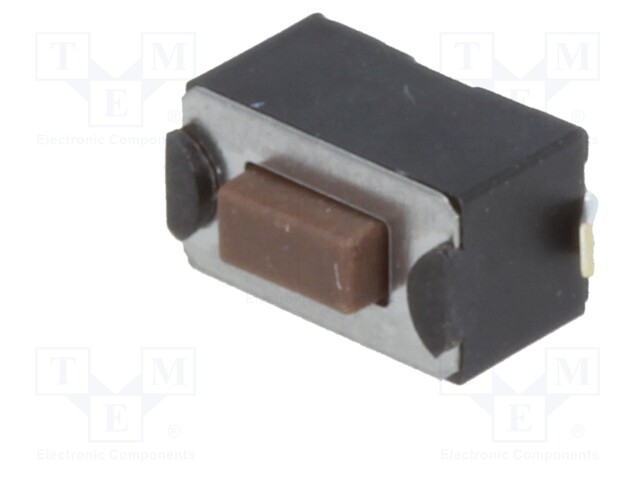

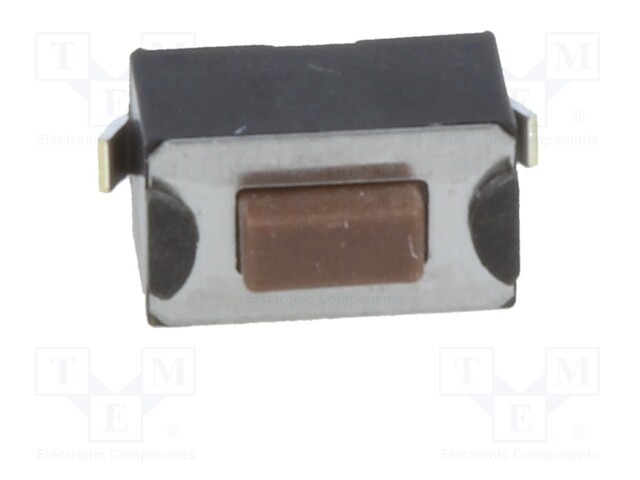

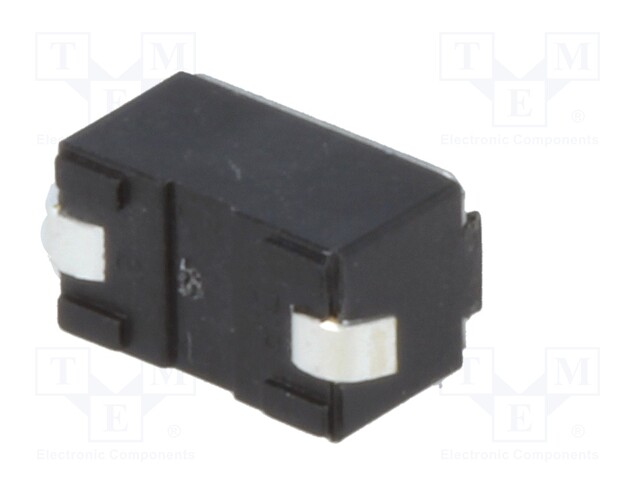

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: DTSM-31N-V-B
    Manufacturer: DIPTRONICS
    Manufacturer code: DTSM-31N-V-B
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body material
    • Flammability rating
    • Soldering temperature
    • Illumination
    • Electrical life
    • Key stroke
    • Contacts configuration
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button height

    0.46 € 0.46 € (wo VAT) 0.46 EUR

    0.46 €

    This combination does not exist.

    Add to Cart

    Product downloads

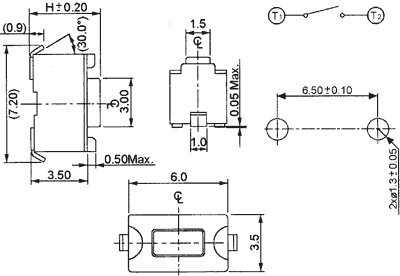

    Specification for Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N

    Mounting SMT
    Operating temperature -25...70°C
    Type of switch microswitch TACT
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material phosphor bronze
    Max. contact resistance: 100mΩ
    Terminal pitch 1.6x7.4mm
    Body material polyamide
    Flammability rating UL94V-0
    Soldering temperature 260°C / 5 s
    Illumination none
    Electrical life 500000cycles
    Key stroke 0.35mm
    Contacts configuration SPST-NO
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 1.6N
    Button shape rectangular
    Button height 4.3mm
