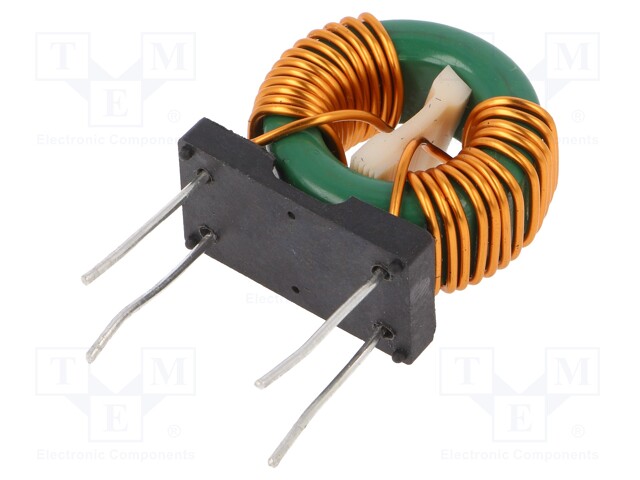

Inductor: wire; THT; 2.2mH; 10A; 10mΩ; 230VAC; 12.7x15mm; -20÷+50%

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DTS-31/2,2/10-KM5
    Manufacturer: FERYSTER
    Manufacturer code: DTS-31/2,2/10-KM5
    • Mounting
    • Resistance
    • Operating voltage
    • Series
    • Terminal pitch
    • Operating current
    • Spatial orientation
    • Type of inductor
    • Test frequency
    • Inductor application
    • Inductor application
    • Inductor application
    • Inductor application
    • Number of windings
    • Inductance of individual winding
    • Kind of inductor

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Inductor: wire; THT; 2.2mH; 10A; 10mΩ; 230VAC; 12.7x15mm; -20÷+50%

    Mounting THT
    Resistance 10mΩ
    Operating voltage 230V AC
    Series DTS-31
    Terminal pitch 12.7x15mm
    Operating current 10A
    Spatial orientation vertical
    Type of inductor wire
    Test frequency 10kHz
    Inductor application as interference suppressors, EMI/RFI filters, higher harmonic suppresion, switched mode power supplies
    Number of windings 2
    Inductance of individual winding 2.2mH
    Kind of inductor toroidal
