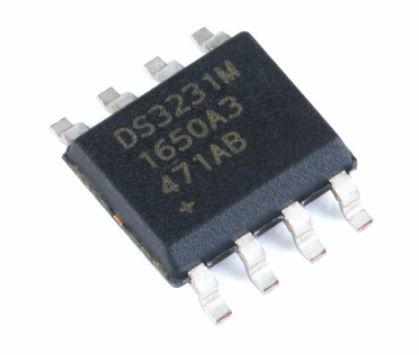

RTC circuit; I2C; 2.3...5.5VDC; SOP-8

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DS3231M
    Manufacturer: MAXIM INTEGRATED
    Manufacturer code: DS3231M
    • Mounting
    • Case
    • Type of integrated circuit
    • Operating voltage
    • Interface
    • DC supplying current
    • Time keeping current
    • Clock format
    • Date format

    5.90 € 5.90 € (wo VAT) 5.9 EUR

    5.90 €

    This combination does not exist.

    Add to Cart

    • Highly Accurate RTC With Integrated MEMS Resonator Completely Manages All Timekeeping Functions

      • Complete Clock Calendar Functionality Including Seconds, Minutes, Hours, Day, Date, Month, and Year, with Leap-Year Compensation Up to Year 2100

      • Timekeeping Accuracy ±5ppm (±0.432 Second/Day) from -45°C to +85°C

      • Footprint and Functionally Compatible to DS3231

      • Two Time-of-Day Alarms

      • 1Hz and 32.768kHz Outputs

      • Reset Output and Pushbutton Input with Debounce

      • Digital Temp Sensor with ±3°C Accuracy

      • +2.3V to +5.5V Supply Voltage

      • Simple Serial Interface Connects to Most Microcontrollers

      • Fast (400kHz) I2C Interface

      • Battery-Backup Input for Continuous Timekeeping

      • Low Power Operation Extends Battery-Backup Run Time

      • Operating Temperature Range: (-40°C to +85°C)

      • 8-Pin or 16-Pin SO Packages

      • Underwriters Laboratories® (UL) Recognized

    Specification for RTC circuit; I2C; 2.3...5.5VDC; SOP-8

    Mounting SMD
    Case SOIC-8
    Type of integrated circuit RTC circuit
    Operating voltage 2.3...5.5V
    Interface I2C
    DC supplying current 300µA
    Time keeping current 0.84µA
    Clock format HH:MM:SS
    Date format YY-MM-DD
