Relay: solid state; Ucntrl: 20÷28VDC; 3A; 1÷200VDC; DIN; -30÷80°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DRA1-CMXE200D3
    Manufacturer: CRYDOM
    Manufacturer code: DRA1-CMXE200D3
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body dimensions
    • Switched voltage
    • Switching method
    • Relay variant
    • Type of relay
    • Relay series

    94.72 € 94.72 € (wo VAT) 94.72 EUR

    94.72 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; Ucntrl: 20÷28VDC; 3A; 1÷200VDC; DIN; -30÷80°C

    Mounting for DIN rail mounting
    Max. operating current 3A
    Operating temperature -30...80°C
    IP rating IP00

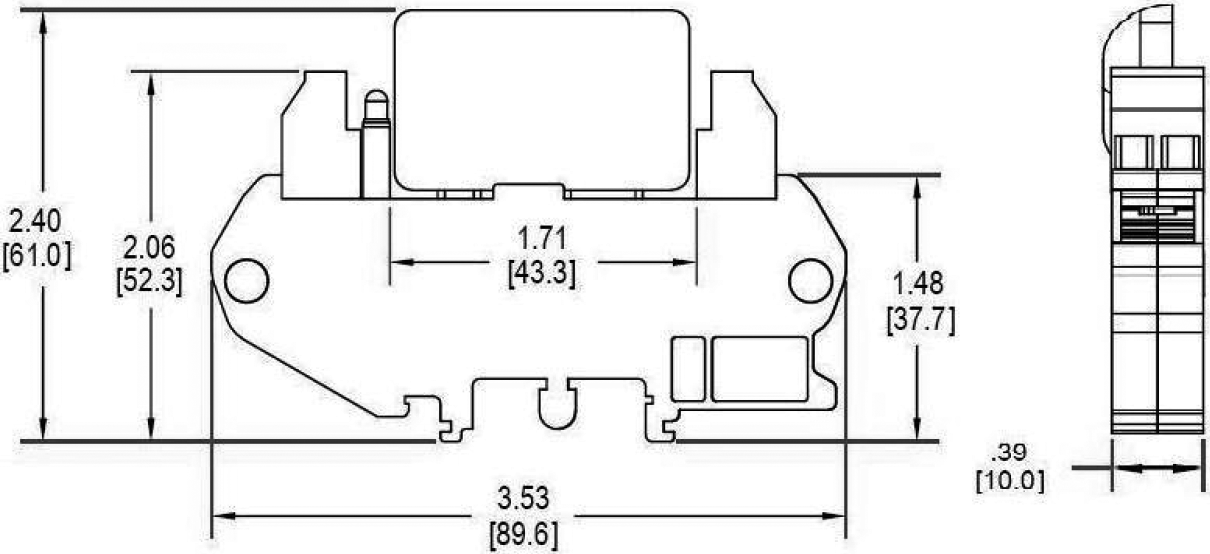

    Body dimensions 89.6x10x61mm
    Switched voltage 1...200V DC
    Switching method instantaneous switching
    Relay variant current source
    Type of relay solid state
    Relay series DRA1-CMX
