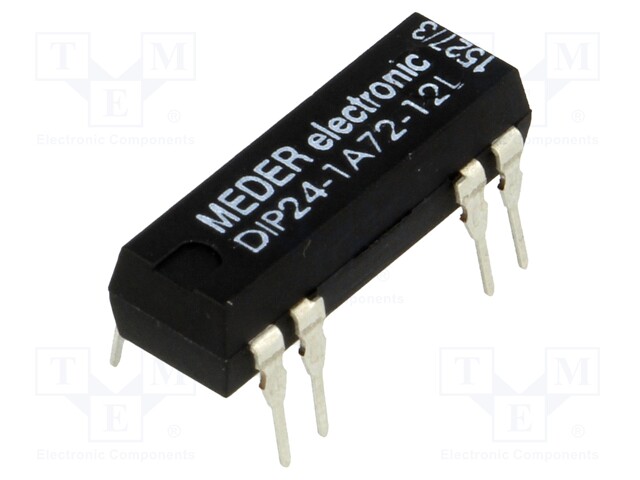

Relay: reed; SPST-NO; Ucoil: 24VDC; 1A; max.200VDC; max.200VAC; PCB
Multiples:
1.0
Minimum quantity:
1.0
Product code:
DIP24-1A72-12L
Manufacturer: MEDER
Manufacturer code: DIP24-1A72-12L
Product downloads
Specification for Relay: reed; SPST-NO; Ucoil: 24VDC; 1A; max.200VDC; max.200VAC; PCB
Mounting | PCB |
Case | DIP14 |
Operating temperature | -20...70°C |
Terminal pitch | 2.54mm |
Soldering temperature | 260°C |
Body dimensions | 19.3x5.1x6.4mm |
Switched voltage | max. 200V AC, max. 200V DC |
Coil resistance | 2kΩ |
Rated coil voltage | 24V DC |
Contacts configuration | SPST-NO |
Contact resistance | 150mΩ |
Contact current max. | 1A |
Coil voltage max. | 30V DC |
Type of relay | reed |
Coil voltage min. | 16.8V DC |
Coil power consumption | 290mW |
Relay series | DIP |
