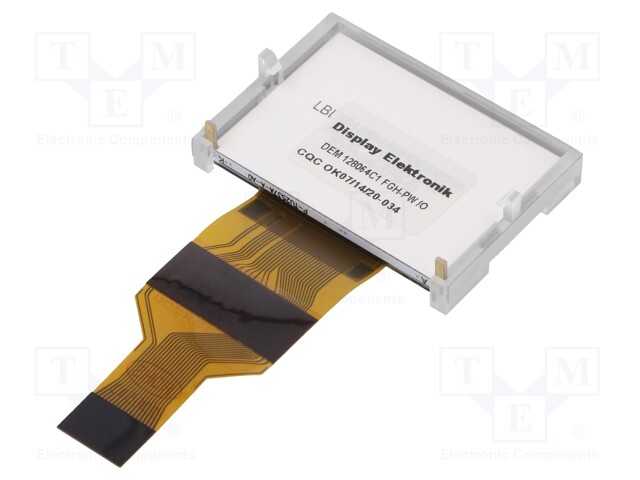

Display: LCD

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DEM 128064C1 FGH-PW
    Manufacturer: DISPLAY ELEKTRONIK
    Manufacturer code: DEM 128064C1 FGH-PW
    • Supply voltage
    • Interface
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Display resolution
    • Screen size
    • Kind of display
    • Display technology
    • Backlight colour
    • Illumination
    • Contrast
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Ribbon cable pitch

    15.25 € 15.25 € (wo VAT) 15.25 EUR

    15.25 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: LCD

    Supply voltage 3...3.3V DC
    Interface 8bit MCU, SPI
    Number of pins 18
    Dimensions 38x26.42x8.8mm
    Type of pin configuration 1x18
    Display resolution 128x64
    Screen size 1.2"
    Kind of display graphical
    Display technology FSTN Positive
    Backlight colour white
    Illumination LED
    Contrast 5:1
    Window dimensions (H x W) 29.58x16.22mm
    Kind of controller ST7565P
    Type of display LCD
    Ribbon cable pitch 500µm
