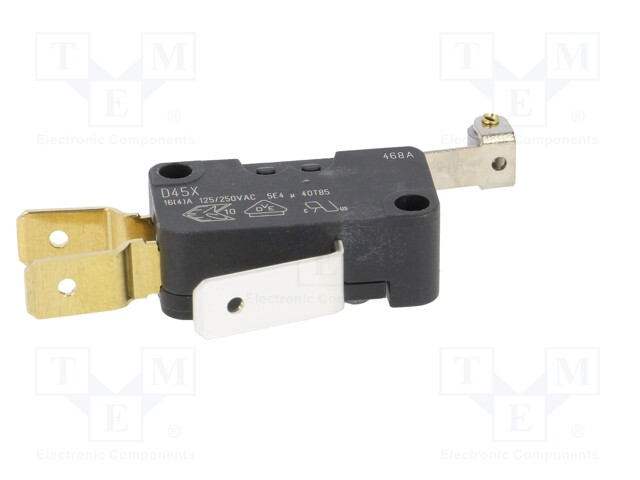

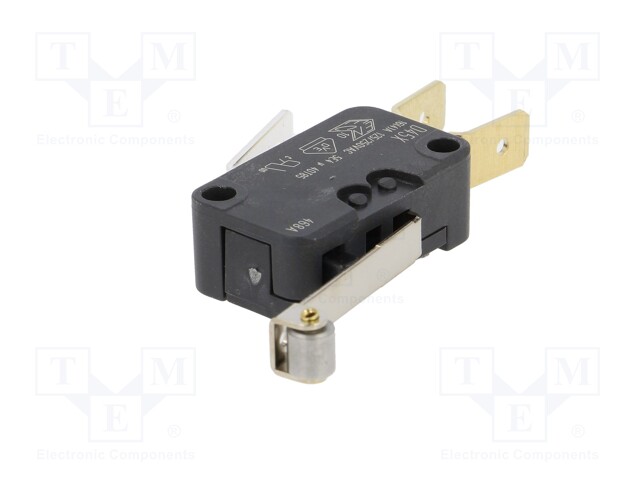

Microswitch SNAP ACTION; SPDT; 16A/250VAC; 4A/250VDC; ON-(ON)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: D459-V3RD
    Manufacturer: CHERRY
    Manufacturer code: D459-V3RD
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Contact material
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; SPDT; 16A/250VAC; 4A/250VDC; ON-(ON)

    Operating temperature -40...85°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever (with roller)
    Number of positions 2
    Leads 6,3x0,8mm connectors
    Contact material AgNi
    Body colour black
    Body dimensions 27.8x10.3x15.9mm
    Mechanical durability 250000cycles
    Electrical life 50000cycles
    Contacts configuration SPDT
    AC contacts rating @R 16A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 1N
