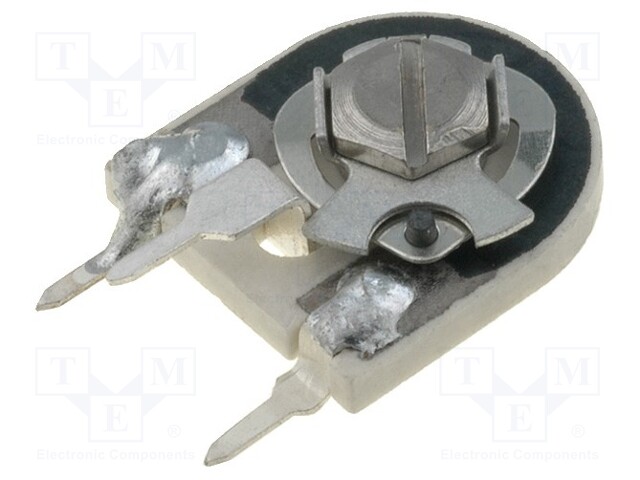

Potentiometer: mounting; single turn,vertical; 6.8kΩ; 1W; ±20%

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CN-15.2-6K8
    Manufacturer: TELPOD
    Manufacturer code: CN-15.2-6K8
    • Mounting
    • Power
    • Resistance
    • Tolerance
    • Terminal pitch
    • Max. operating voltage
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Potentiometer standard
    • Potentiometer series

    7.14 € 7.14 € (wo VAT) 7.140000000000001 EUR

    7.14 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,vertical; 6.8kΩ; 1W; ±20%

    Mounting THT
    Power 1W
    Resistance 6.8kΩ
    Tolerance ±20%
    Terminal pitch 10x5mm
    Max. operating voltage 250V
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material cermet
    Characteristics linear
    Potentiometer standard 15mm
    Potentiometer series CN-15
