Module: monitoring relay; motor temperature; Temp.sensor: PTC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CM-MSS.23S
    Manufacturer: ABB
    Manufacturer code: CM-MSS.23S
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • IP rating
    • Leads
    • Type of module
    • Body dimensions
    • Additional functions
    • Number of inputs
    • Kind of temperature sensor
    • AC contacts rating @R
    • Controlled parameter
    • Kind of output 1

    70.22 € 70.22 € (wo VAT) 70.22 EUR

    70.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: monitoring relay; motor temperature; Temp.sensor: PTC

    Mounting for DIN rail mounting
    Supply voltage 110...130V AC, 220...240V AC
    Operating temperature -25...60°C
    IP rating IP20, IP50
    Leads screw terminals
    Type of module monitoring relay

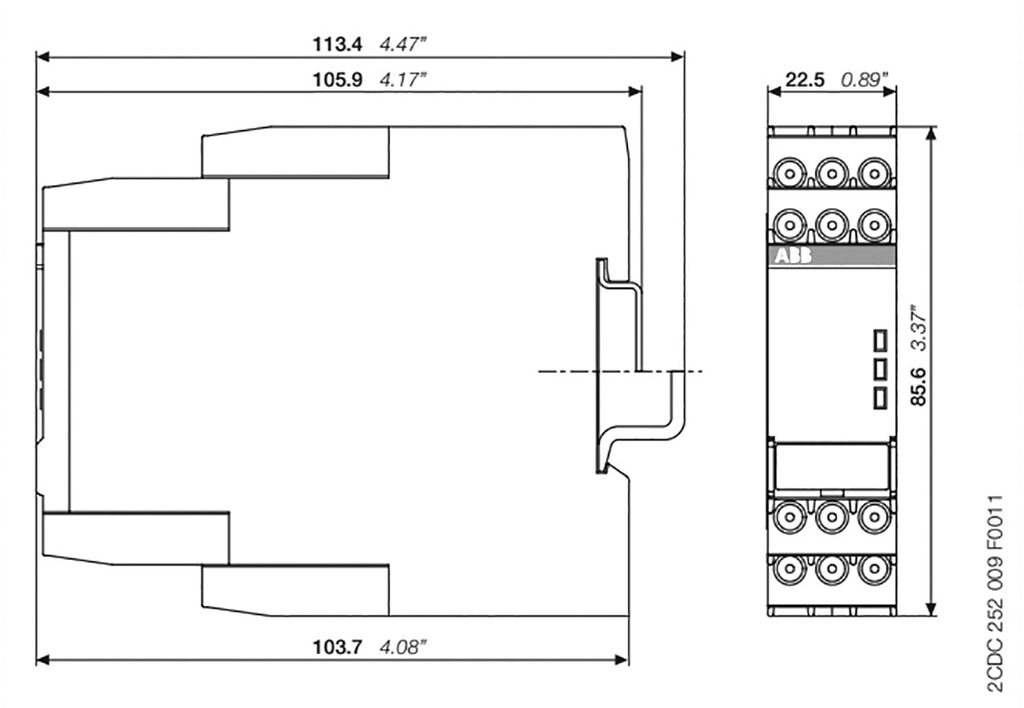

    Body dimensions 22.5x85.6x103.7mm
    Additional functions LED status indicator
    Number of inputs 1
    Kind of temperature sensor PTC
    AC contacts rating @R 4A / 230V AC
    Controlled parameter motor temperature
    Kind of output 1 2x SPDT
