Power supply: switched-mode

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: CFM500S120
    Manufacturer: CINCON
    Manufacturer code: CFM500S120
    • Output current
    • Supply voltage
    • Case
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Insulation voltage
    • Efficiency
    • Electrical connection
    • Kind of power supply
    • Switching frequency

    111.43 € 111.43 € (wo VAT) 111.43 EUR

    111.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode

    Output current 25A
    Supply voltage 80...264V AC

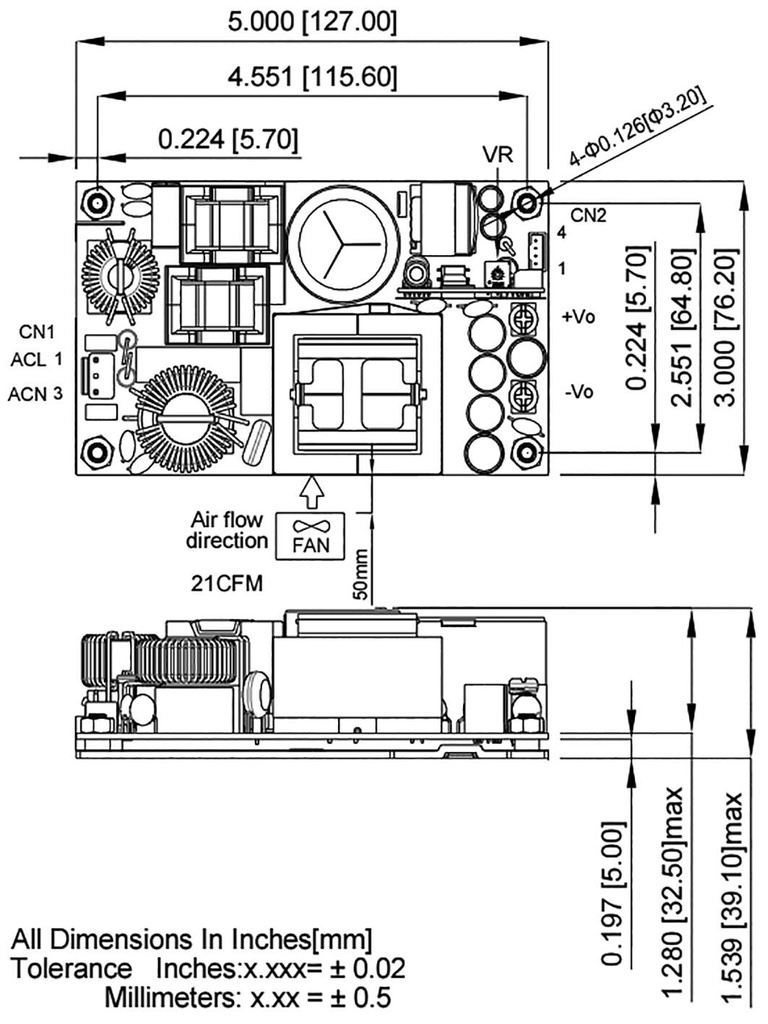

    Case 5"x3"
    Power 500W
    Operating temperature -40...85°C
    Protection anti-overload, overheating, short circuit protection
    Type of power supply switched-mode
    Output voltage 12V DC
    Additional functions active PFC, auxiliary DC output 12V/500mA, PFC
    Insulation voltage 4kV
    Efficiency 92.5%
    Electrical connection connector with snap lock
    Kind of power supply open
    Switching frequency 65kHz
