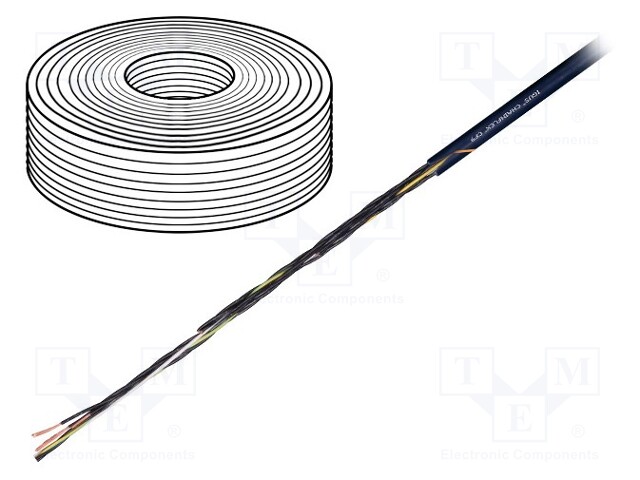

Wire: control cable; chainflex® CF9; 7x0,5mm2; TPE; black; Cu; 7mm

    Multiples: 5.0
    Minimum quantity: 5.0
    Product code: CF9.05.07
    Manufacturer: igus
    Manufacturer code: CF9.05.07
    • Operating temperature
    • Core structure
    • Kind of core
    • Cable features
    • Number of cores
    • Resistance to
    • Resistance to
    • Resistance to
    • Resistance to
    • Resistance to
    • Wire insulation material
    • Kind of wire
    • Rated voltage
    • Rated voltage
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Cable application
    • Cable application
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    8.51 € 8.51 € (wo VAT) 8.51 EUR

    8.51 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire: control cable; chainflex® CF9; 7x0,5mm2; TPE; black; Cu; 7mm

    Operating temperature -35...100°C
    Core structure stranded
    Kind of core Cu
    Cable features self-supporting
    Number of cores 7
    Resistance to mineral oils, moisture, most of oils, torsion, UV rays
    Wire insulation material TPE
    Kind of wire chainflex® CF9
    Rated voltage 300V, 500V
    Cable external diameter 7mm
    Insulation colour black
    Cable application industrial applications, outdoor, power chain, rapid handling systems
    Type of wire control cable
    Shield structure unshielded
    Core marking colours without colour repetition
    Earth core without earth core
    CPR standard no classification
