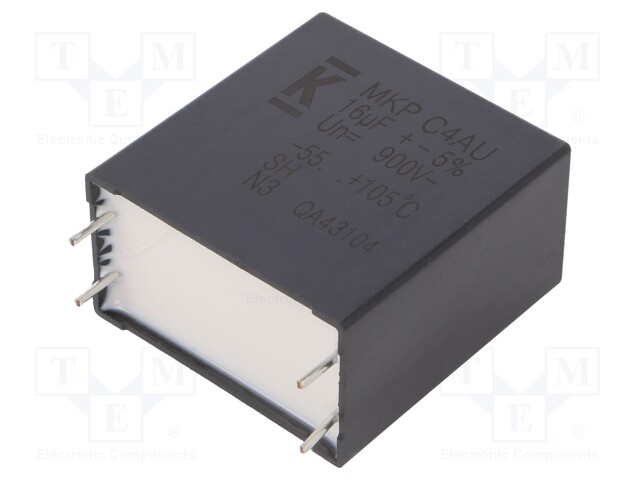

Capacitor: polypropylene; DC-Link; 16uF; ESR: 4.6mΩ; THT; ±5%; 18.1A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: C4AUOBW5160M3HJ
    Manufacturer: KEMET
    Manufacturer code: C4AUOBW5160M3HJ
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • Climate class
    • Climate class
    • Pulse resistance

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; DC-Link; 16uF; ESR: 4.6mΩ; THT; ±5%; 18.1A

    Mounting THT
    Operating temperature -55...105°C
    Tolerance ±5%
    Terminal pitch 37.5mm
    Max. operating voltage 900V DC
    Capacitance 16µF
    Kind of capacitor DC-Link
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 35V/μs
