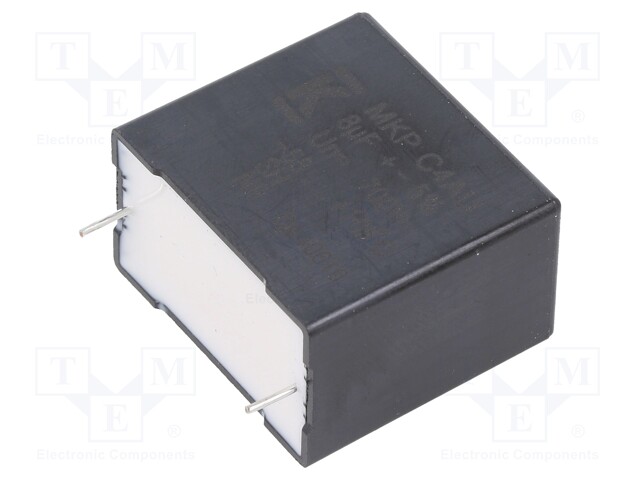

Capacitor: polypropylene; DC-Link; 8uF; ESR: 7.3mΩ; THT; ±5%; 11.3A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: C4AUJBU4800M11J
    Manufacturer: KEMET
    Manufacturer code: C4AUJBU4800M11J
    • Mounting
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class

    3.48 € 3.48 € (wo VAT) 3.48 EUR

    3.48 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; DC-Link; 8uF; ESR: 7.3mΩ; THT; ±5%; 11.3A

    Mounting THT
    Max. operating current 11.3A
    Operating temperature -55...105°C
    Tolerance ±5%
    Terminal pitch 27.5mm
    Max. operating voltage 700V DC
    Capacitance 8µF
    Kind of capacitor DC-Link
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 7.3mΩ
    Climate class 55/105/56, IEC60068-1
