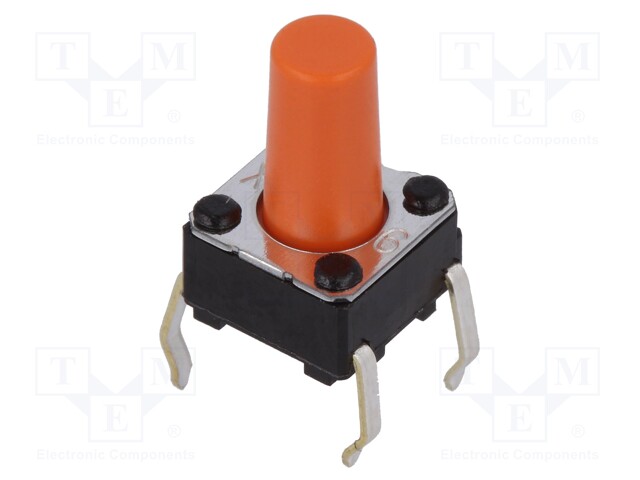

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 2.55N
Multiples:
1.0
Minimum quantity:
5.0
Product code:
B3F-1075
Manufacturer: OMRON OCB
Manufacturer code: B3F-1075
Product downloads
Specification for Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 2.55N
Mounting | THT |
Operating temperature | -25...70°C |
Type of switch | microswitch TACT |
Contact plating | silver plated |
Number of positions | 2 |
Leads | for PCB, straight |
Contact material | phosphor bronze |
Max. contact resistance: | 100mΩ |
Terminal pitch | 4.5x6.5mm |
Mechanical durability | 100000cycles |
Illumination | none |
Key stroke | 0.25mm |
Contacts configuration | SPST-NO |
Switching method | OFF-(ON) |
Stable positions number | 1 |
Operating Force | 2.55N |
Actuator colour | orange |
Button shape | round |
Button height | 9.5mm |
