Relay: electromagnetic; DPST; Ucoil: 12VDC; 35A; Series: AZSR235

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZSR235-2AE-12D
    Manufacturer: ZETTLER
    Manufacturer code: AZSR235-2AE-12D
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Coil power consumption

    18.35 € 18.35 € (wo VAT) 18.35 EUR

    18.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST; Ucoil: 12VDC; 35A; Series: AZSR235

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

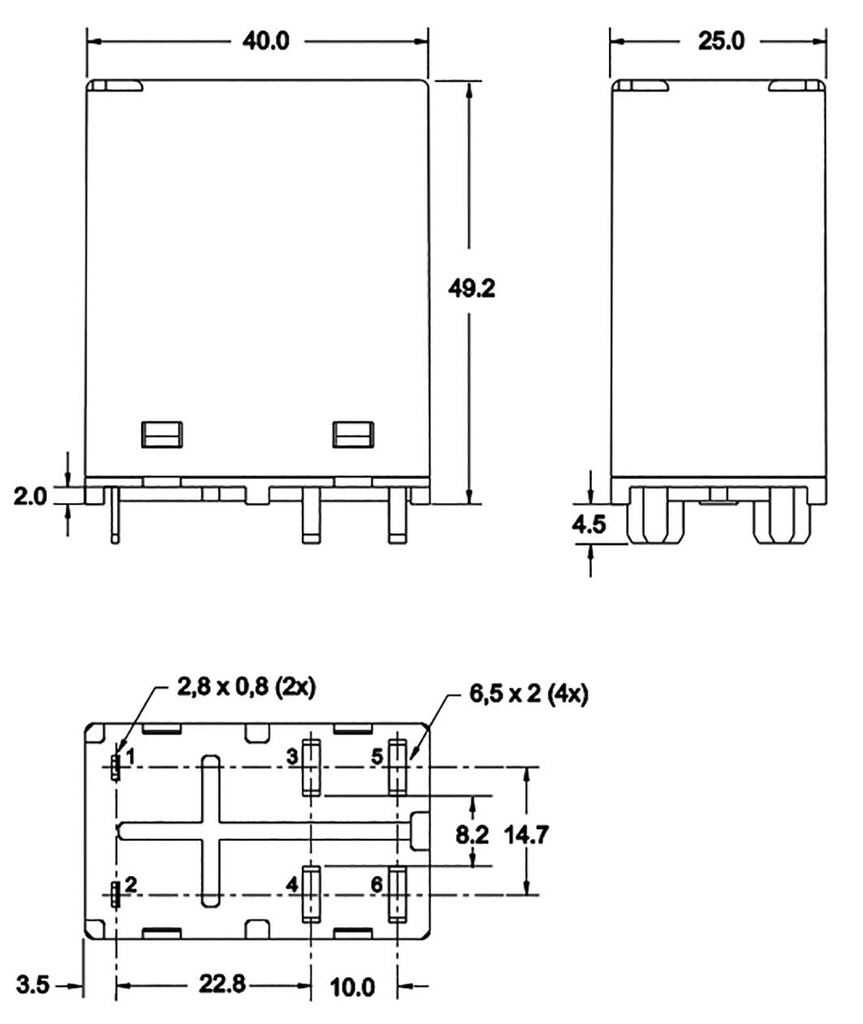

    Body dimensions 40x25x49.2mm
    Switched voltage max. 150V DC, max. 440V AC
    Coil resistance 170Ω
    Rated coil voltage 12V DC

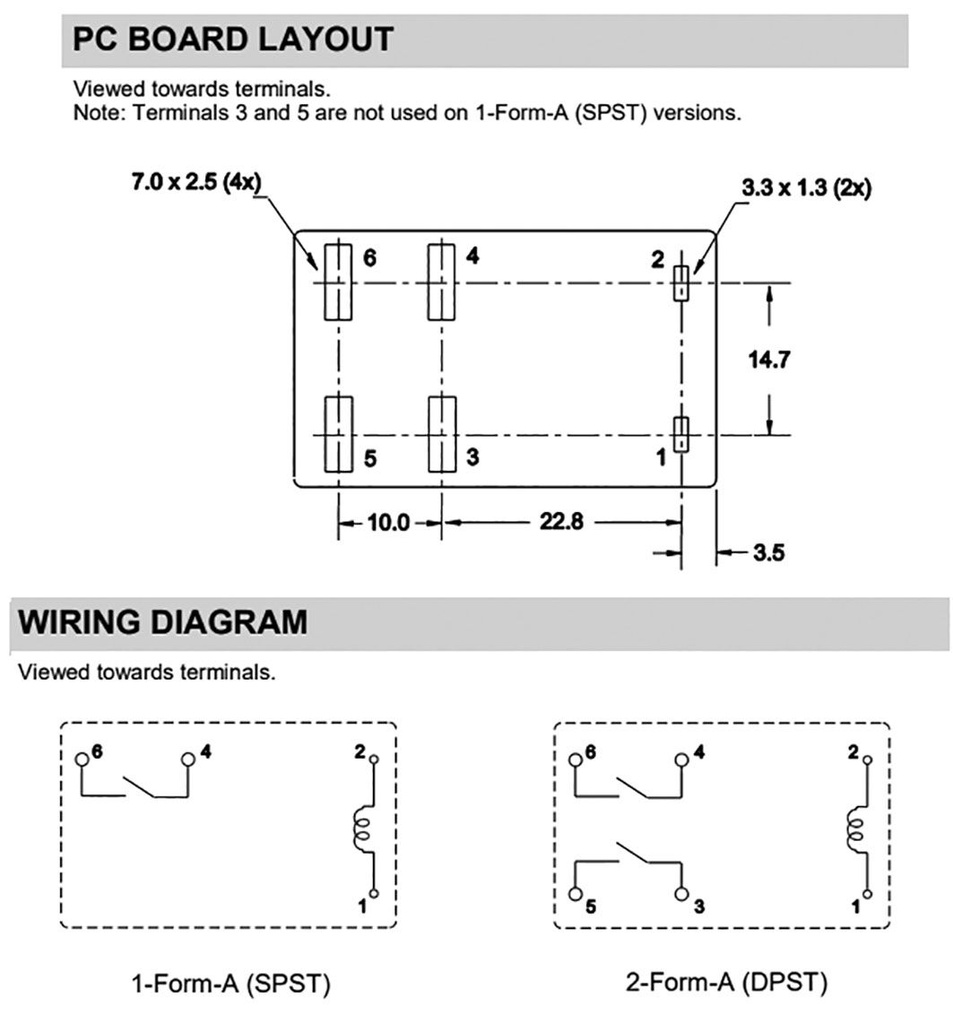

    Contacts configuration DPST
    Contact current max. 35A
    Coil power consumption 480mW
