Relay: electromagnetic power; DPST-NO + SPST-NC; Ucoil: 12VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZEV200-2AE1B-12D
    Manufacturer: ZETTLER
    Manufacturer code: AZEV200-2AE1B-12D
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic power; DPST-NO + SPST-NC; Ucoil: 12VDC

    Mounting PCB
    Operating temperature -40...95°C
    Contact material AgSnO<sub>2</sub>
    Switched voltage max. 480V AC
    Rated coil voltage 12V DC

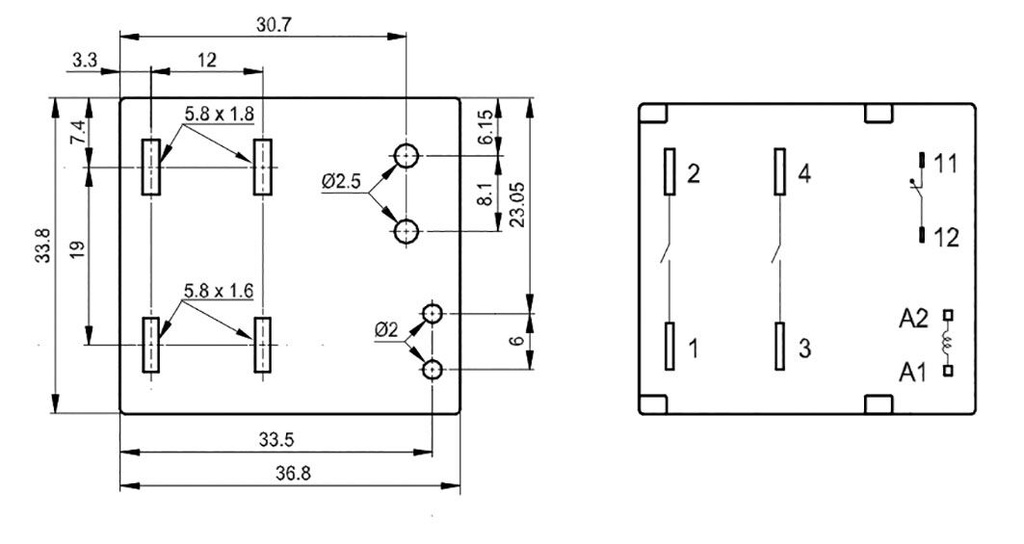

    Contacts configuration DPST-NO + SPST-NC
    Contact resistance 2mΩ
    Contact current max. 40A
