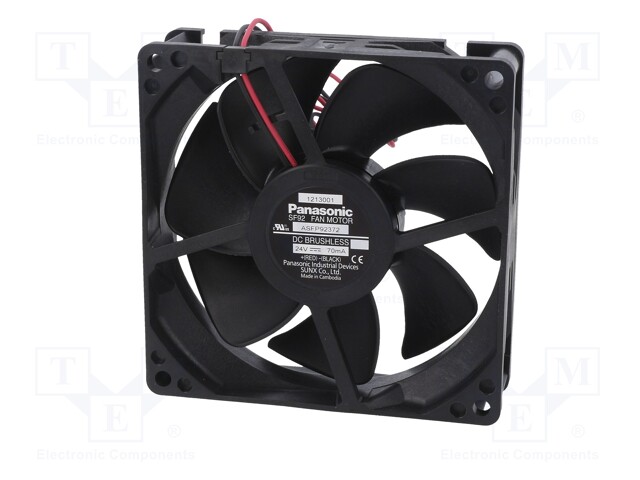

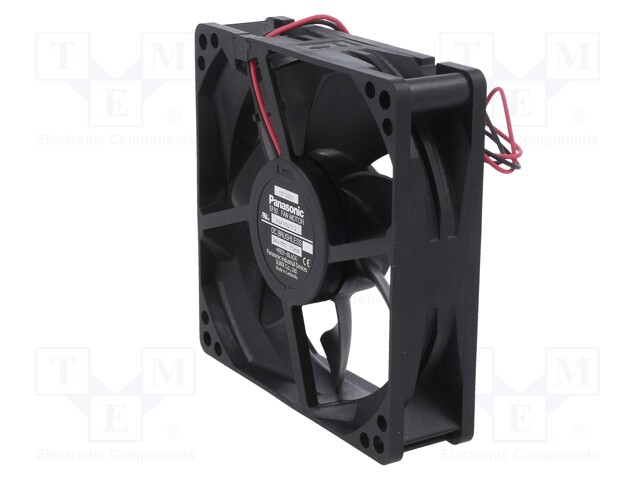

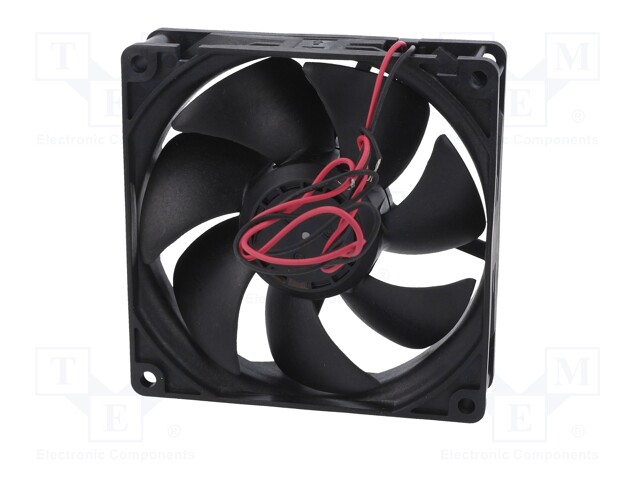

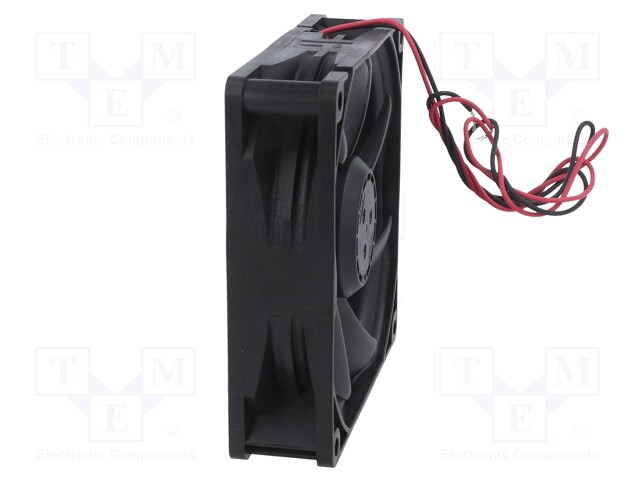

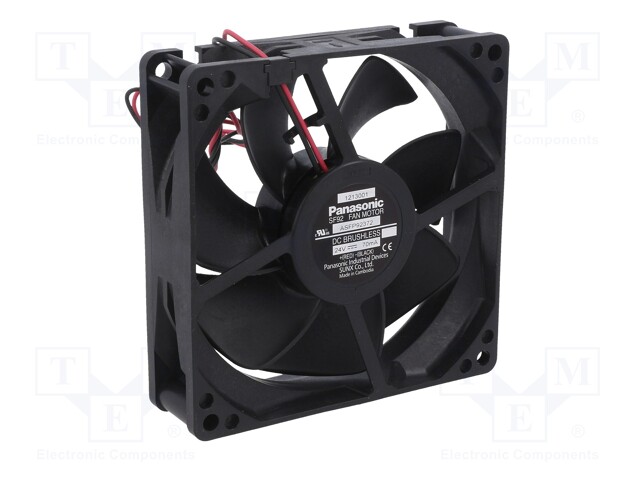

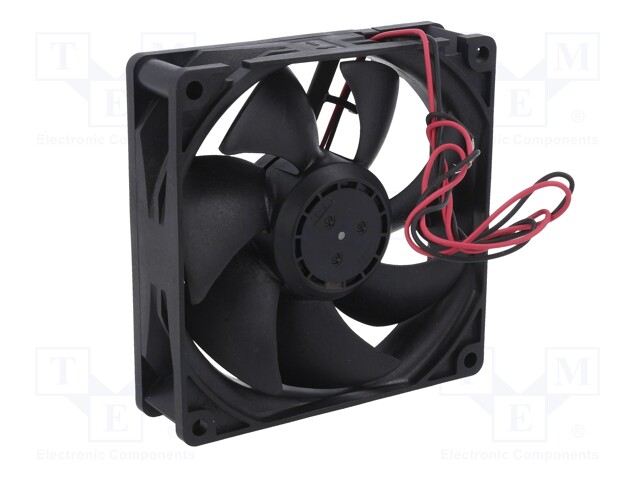

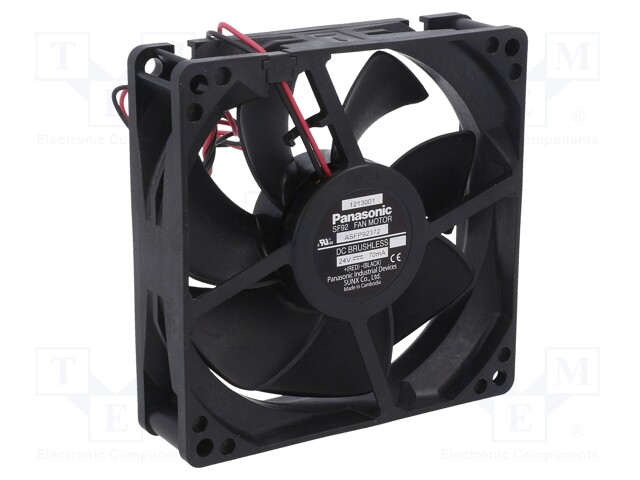

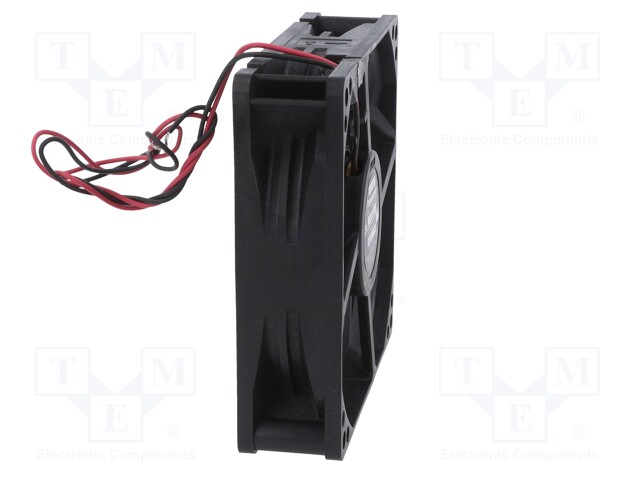

Fan: DC; axial; 24VDC; 92x92x25mm; 67.8m3/h; 25dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ASFP92372
    Manufacturer: PANASONIC
    Manufacturer code: ASFP92372
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Cable length
    • Current rating
    • Power consumption
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    19.59 € 19.59 € (wo VAT) 19.59 EUR

    19.59 €

    This combination does not exist.

    Add to Cart

    Specification for Fan: DC; axial; 24VDC; 92x92x25mm; 67.8m3/h; 25dBA; ball bearing

    Supply voltage 24V DC
    Operating temperature -10...60°C
    Enclosure material plastic
    Leads 2 leads
    Cable length 300mm
    Current rating 50mA
    Power consumption 1.2W
    Rotational rate/speed 2400rpm
    Fan dimensions 92x92x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 25dBA
