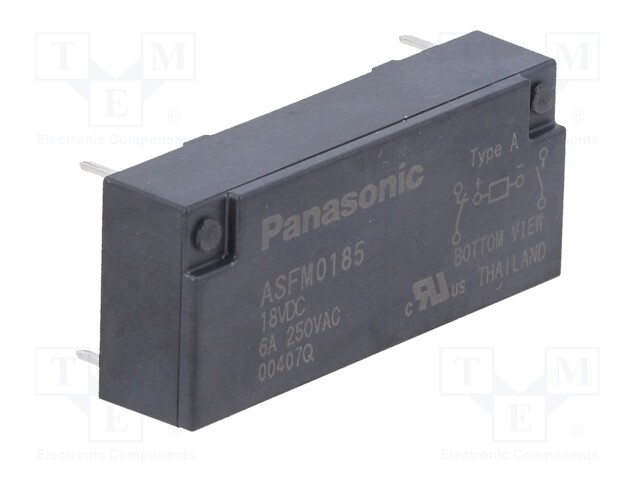

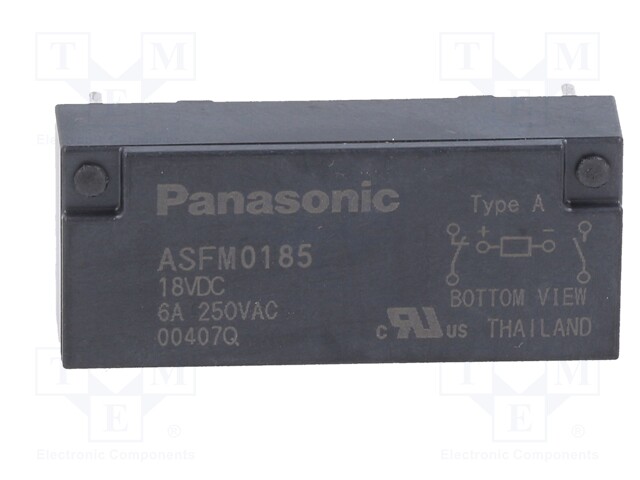

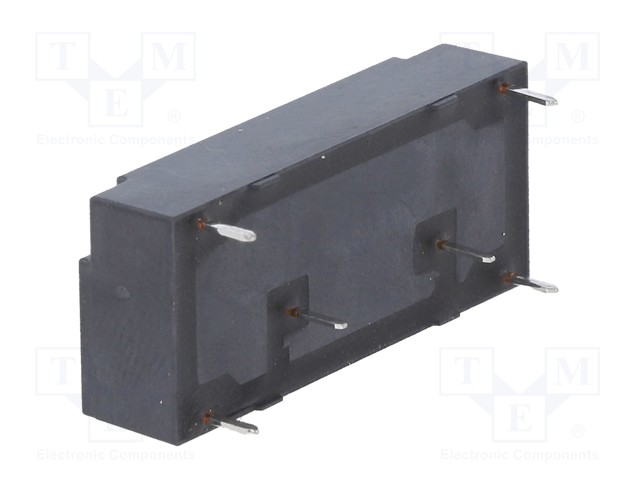

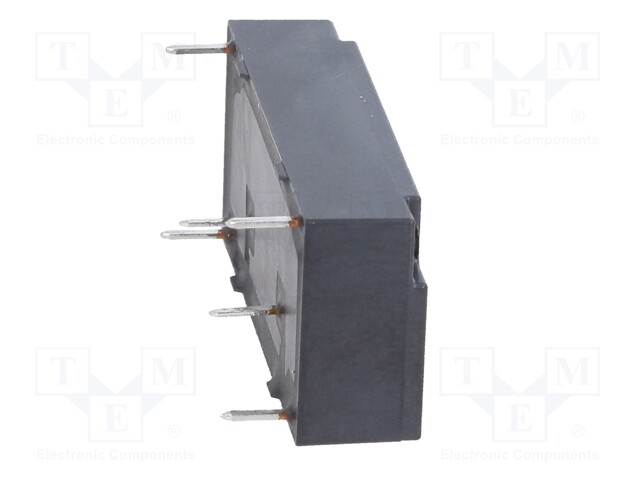

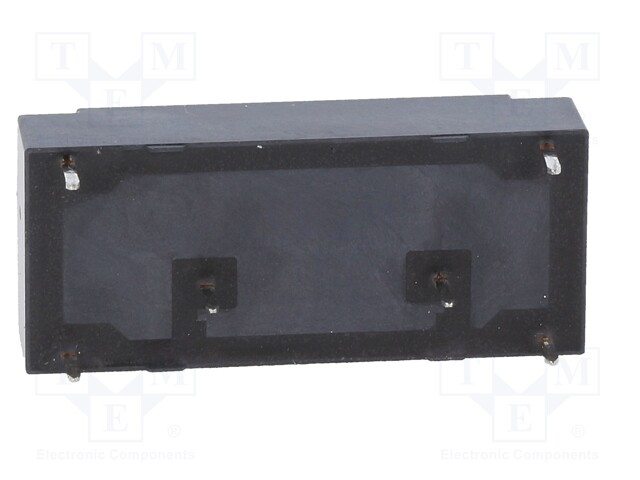

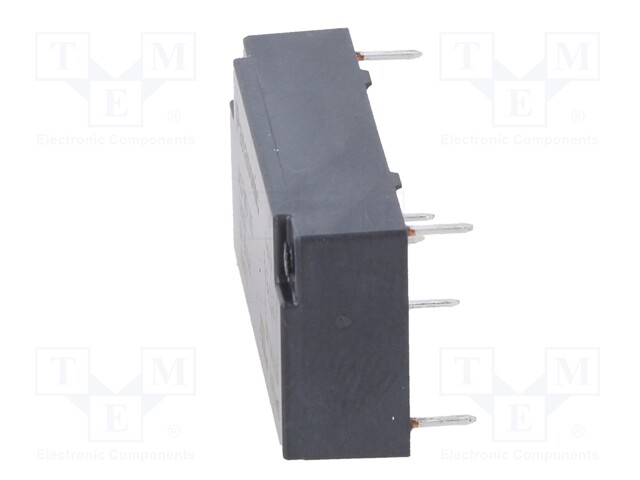

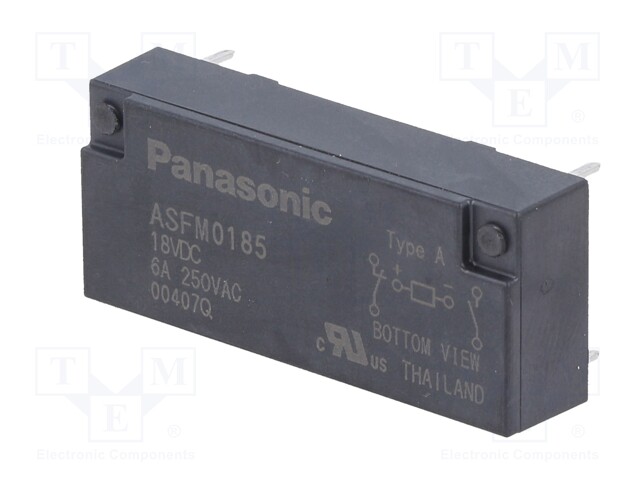

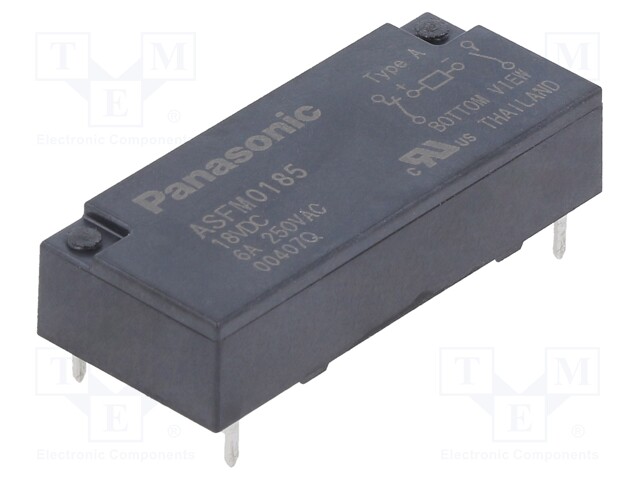

Relay: miniature; NC + NO; Ucoil: 18VDC; 4A/250VAC; 4A/30VDC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ASFM0185S
    Manufacturer: PANASONIC
    Manufacturer code: ASFM0185S
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Coil voltage min.

    34.31 € 34.31 € (wo VAT) 34.31 EUR

    34.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: miniature; NC + NO; Ucoil: 18VDC; 4A/250VAC; 4A/30VDC; 6A

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub> Au
    Switched voltage max. 125V DC, max. 250V AC
    Coil resistance 1.2kΩ
    Rated coil voltage 18V DC
    Contacts configuration NC + NO
    DC contacts rating @R 4A / 30V DC
    AC contacts rating @R 4A / 250V AC
    Contact current max. 6A
    Coil voltage min. 13.5V DC
