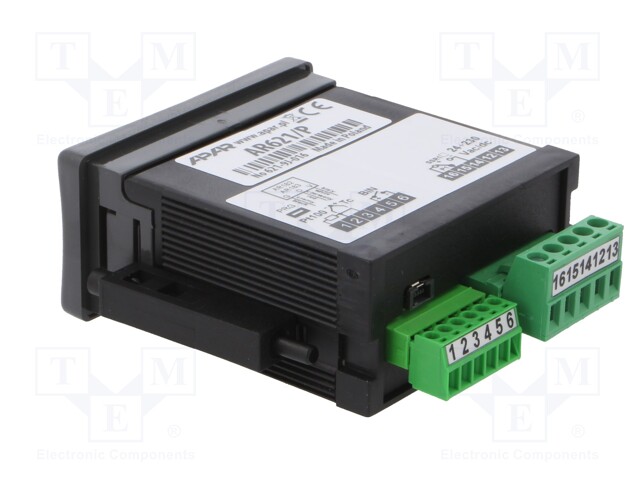

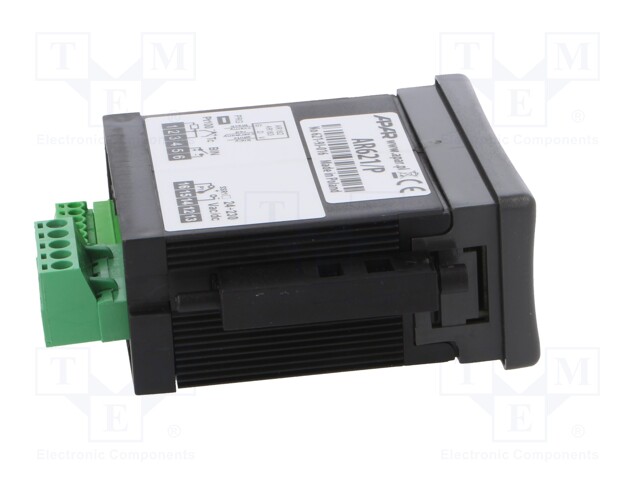

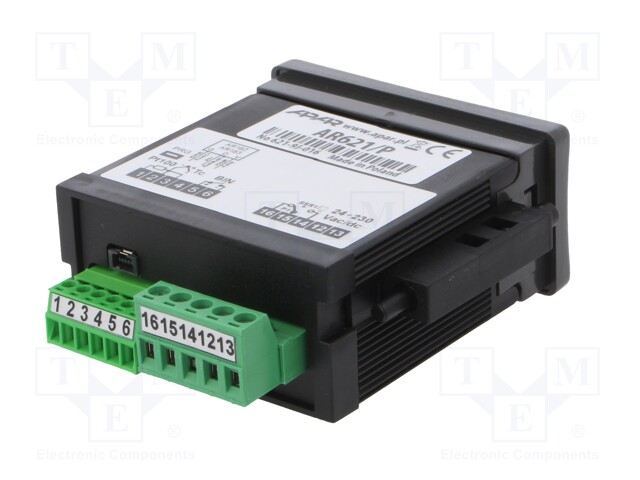

Module: regulator; temperature; SPDT; panel; 250VAC/8A; -1999÷9999

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AR621/P
    Manufacturer: APAR
    Manufacturer code: AR621/P
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • IP rating
    • Type of module
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Kind of input 1
    • Kind of input 1
    • Kind of input 1
    • Kind of input 1
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Controlled parameter
    • Kind of output 1
    • The programming method
    • Input 1 properties
    • Input 1 properties
    • Display height 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1

    125.55 € 125.55 € (wo VAT) 125.55 EUR

    125.55 €

    This combination does not exist.

    Add to Cart

    Specification for Module: regulator; temperature; SPDT; panel; 250VAC/8A; -1999÷9999

    Mounting on panel
    Supply voltage 15...250V AC, 20...350V DC
    Operating temperature 0...50°C
    IP rating IP20 at terminal side, IP65 (from the front)
    Type of module regulator
    Mounting hole diameter 32x67mm
    Body dimensions 72x36x77mm
    Kind of display used LED
    Kind of input 1 digital, RTD, thermocouple, universal
    Kind of temperature sensor Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
    Controlled parameter temperature
    Kind of output 1 SPDT
    The programming method foil keypad
    Input 1 properties RTD, thermocouple
    Display height 1 10mm
    Regulation for output 1 AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID
