Power supply: switched-mode; 75W; 12VDC; 6.3A; 85÷264VAC; DIN; 370g

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AMED75-12SNZ
    Manufacturer: AIMTEC
    Manufacturer code: AMED75-12SNZ
    • Output current
    • Mounting
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Body dimensions
    • Output voltage
    • Efficiency
    • Electrical connection
    • Kind of power supply

    40.14 € 40.14 € (wo VAT) 40.14 EUR

    40.14 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; 75W; 12VDC; 6.3A; 85÷264VAC; DIN; 370g

    Output current 6.3A
    Mounting for DIN rail mounting
    Supply voltage 85...264V AC
    Power 75W
    Operating temperature -30...70°C
    Protection anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series AMED75-NZ

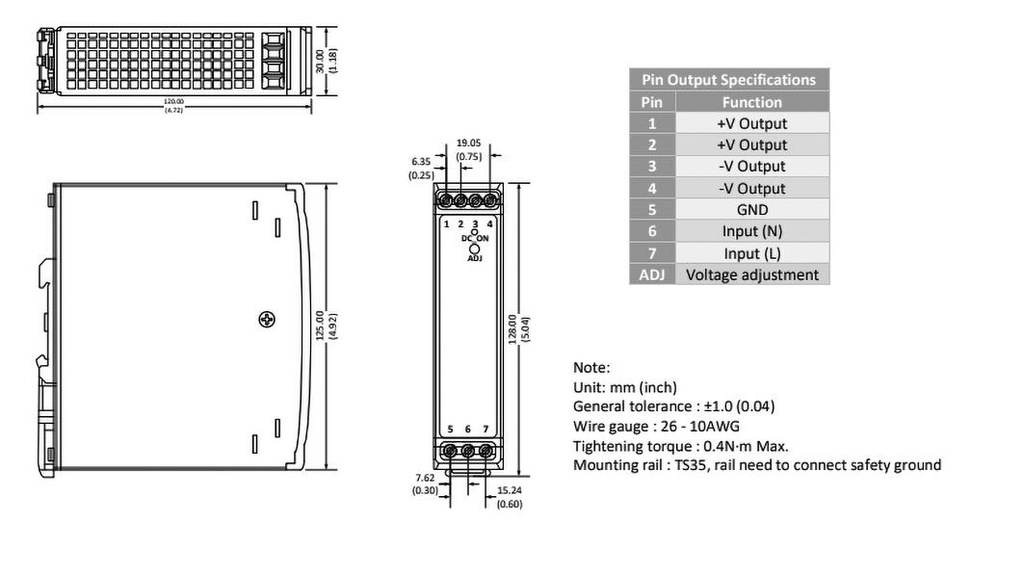

    Body dimensions 30x128x120mm
    Output voltage 12V DC
    Efficiency 86%
    Electrical connection terminal block
    Kind of power supply for DIN rail
