Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ALF1T12
    Manufacturer: PANASONIC
    Manufacturer code: ALF1T12
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current

    6.59 € 6.59 € (wo VAT) 6.59 EUR

    6.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Mounting THT
    Operating temperature -40...60°C
    Contact material AgSnO<sub>2</sub>

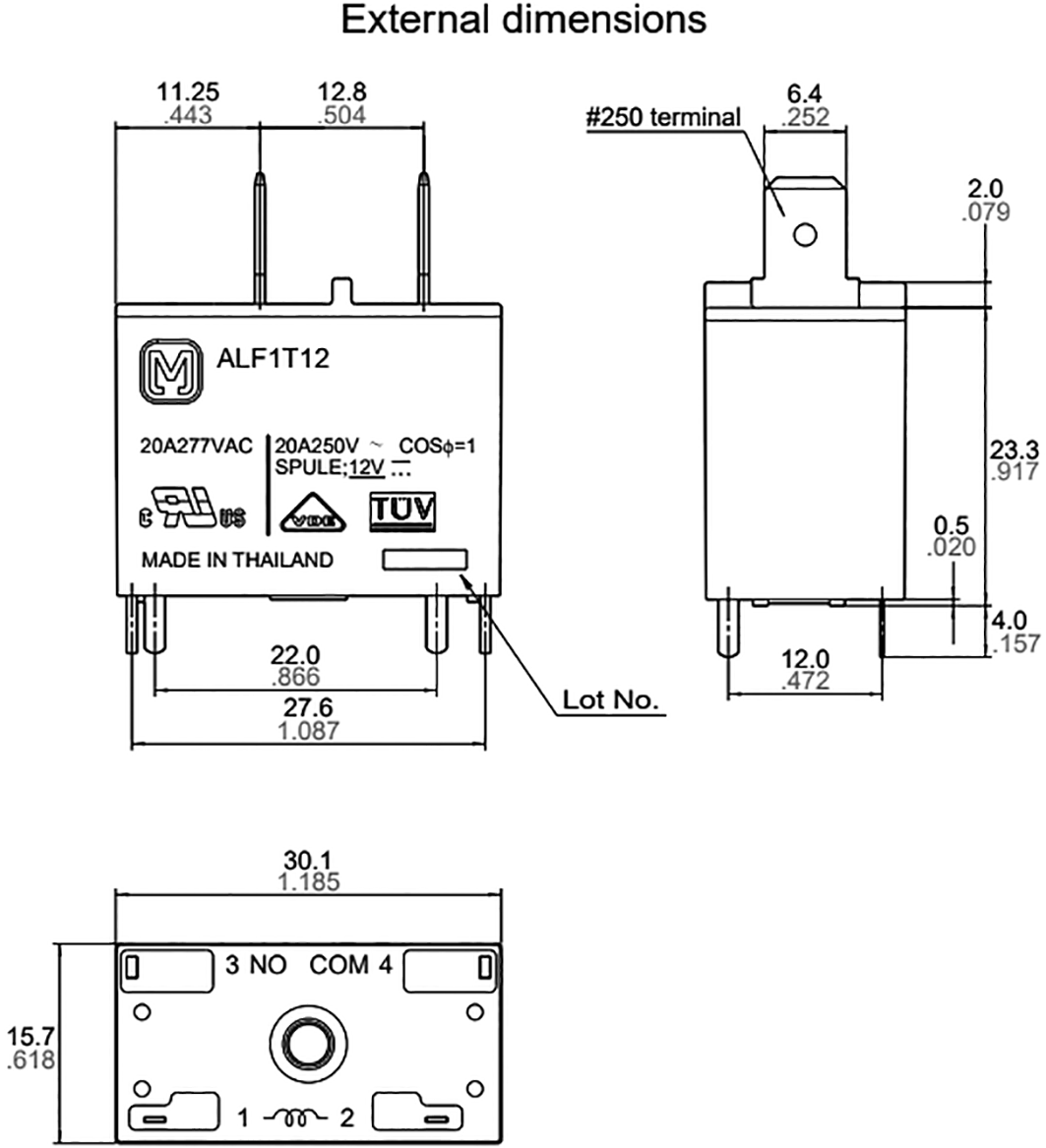

    Body dimensions 30.1x15.7x23.3mm
    Switched voltage max. 250V AC
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 20A / 250V AC
    Contact current max. 25A
    Relay variant power
    Type of relay electromagnetic
    Coil current 75mA
