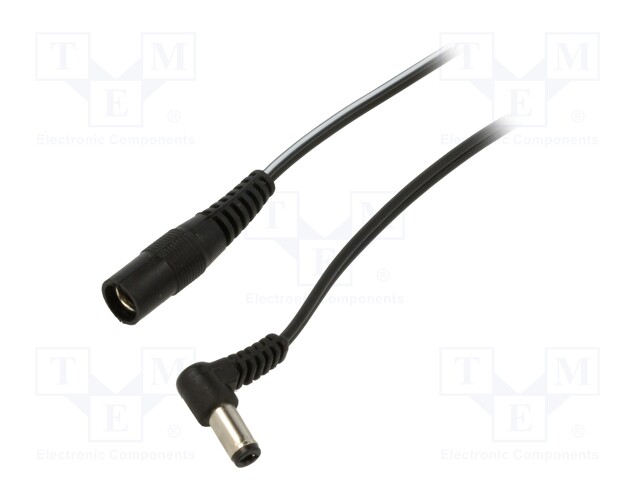

Cable; DC 5,5/2,1 socket,DC 5,5/2,5 plug; angled; 0.5mm2; black

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: A25-C21-T050-150BK
    Manufacturer: WEST POL
    Manufacturer code: A25-C21-T050-150BK
    • Max. operating current
    • Operating temperature
    • Number of cores
    • Wire insulation material
    • Cable length
    • Rated voltage
    • Connector variant
    • Type of connection cable
    • Cable/adapter structure
    • Cable/adapter structure
    • Insulation colour
    • Length of metal part
    • Shield structure
    • Wire cross-section shape

    6.87 € 6.87 € (wo VAT) 6.87 EUR

    6.87 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Cable; DC 5,5/2,1 socket,DC 5,5/2,5 plug; angled; 0.5mm2; black

    Max. operating current 1.5A
    Operating temperature -20...70°C
    Number of cores 2
    Wire insulation material PVC
    Cable length 1.5m
    Rated voltage 100V
    Connector variant angled
    Type of connection cable mains DC
    Cable/adapter structure DC 5,5/2,1 socket, DC 5,5/2,5 plug
    Insulation colour black
    Length of metal part 10mm
    Shield structure unshielded
    Wire cross-section shape flat
