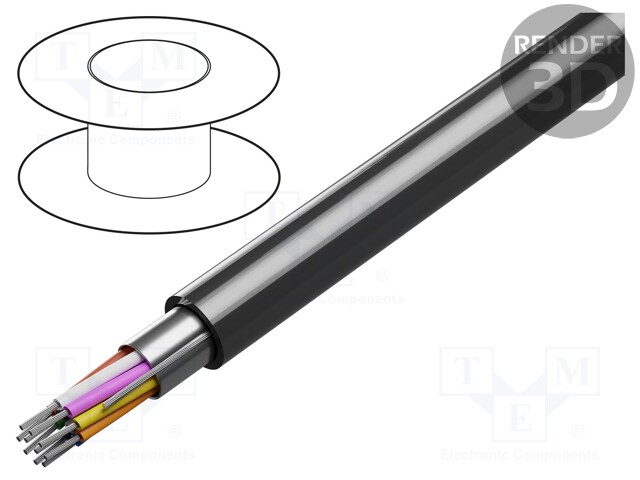

Wire; RS232; stranded; Cu; Al-PET foil; PVC; chrome; 152m

    Multiples: 2.0
    Minimum quantity: 2.0
    Product code: 9540-2
    Manufacturer: BELDEN
    Manufacturer code:
    • Operating temperature
    • Core structure
    • Kind of core
    • Kind of core
    • Number of cores
    • Wire insulation material
    • Rated voltage
    • Cable external diameter
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    8.30 € 8.30 € (wo VAT) 8.3 EUR

    8.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire; RS232; stranded; Cu; Al-PET foil; PVC; chrome; 152m

    Operating temperature -30...80°C
    Core structure stranded
    Kind of core Cu, tinned
    Number of cores 10
    Wire insulation material PVC
    Rated voltage 300V
    Cable external diameter 5.69mm, 6.2mm
    Insulation colour chrome
    Cable application RS232, indoor
    Type of wire data transmission
    Shield structure Al-PET foil
    Core marking colours without colour repetition
    Earth core without earth core
    CPR standard E<sub>ca</sub>
