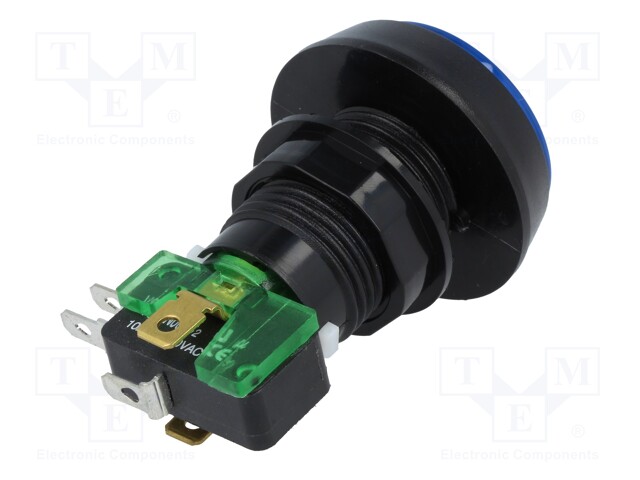

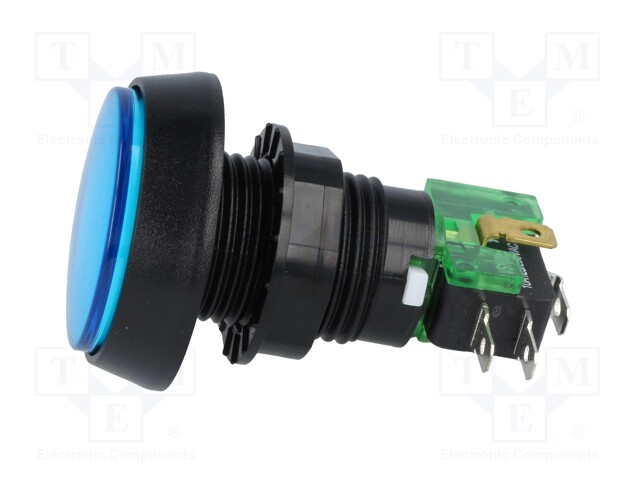

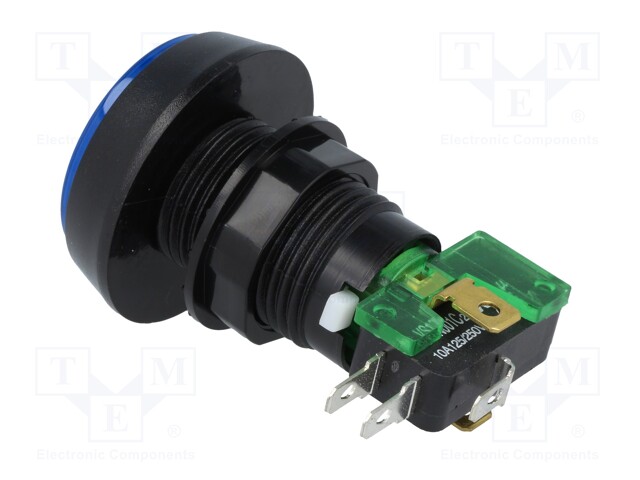

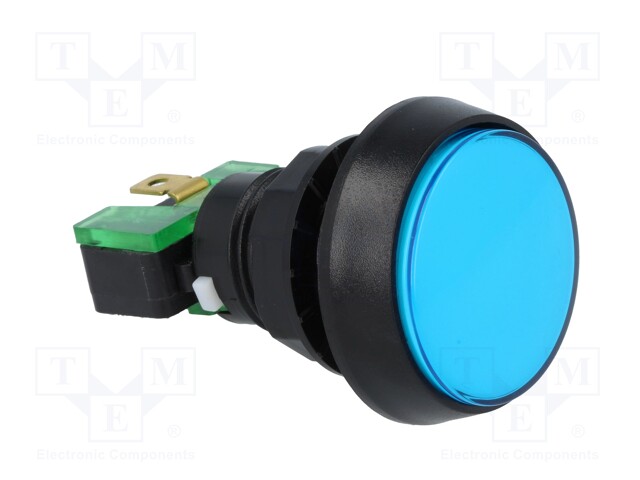

Switch: push-button; Pos: 2; SPDT; 10A/250VAC; blue; blue; Ø: 44mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 910-2-10-1C2 24V LED BLUE
    Manufacturer: HIGHLY
    Manufacturer code: 910-2-10-1C2 24V LED BLUE
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Mounting hole diameter
    • Body colour
    • Diameter
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape

    5.43 € 5.43 € (wo VAT) 5.43 EUR

    5.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPDT; 10A/250VAC; blue; blue; Ø: 44mm

    Mounting on panel
    Operating temperature -25...70°C
    Type of switch push-button
    Number of positions 2
    Leads 4,8x0,5mm connectors
    Mounting hole diameter Ø24.5mm
    Body colour black
    Diameter 44mm
    Mechanical durability 1000000cycles
    Backlight colour blue
    Illumination LED
    Electrical life 100000cycles
    Contacts configuration SPDT
    AC contacts rating @R 10A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Actuator colour blue
    Button shape prominent, round
