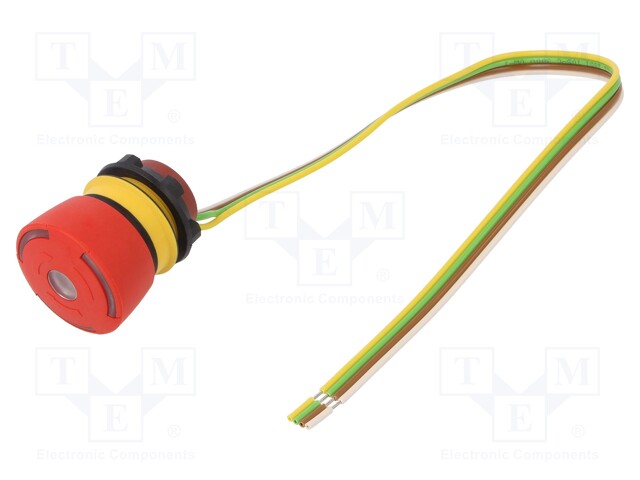

Switch: emergency stop; Stabl.pos: 2; NC; 5A/250VAC; 5A/24VDC; 22mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 84-5021.2B40
    Manufacturer: EAO
    Manufacturer code: 84-5021.2B40
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Mounting hole diameter
    • Cable length
    • Illumination
    • Face dimensions
    • Switch standard
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button marking

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: emergency stop; Stabl.pos: 2; NC; 5A/250VAC; 5A/24VDC; 22mm

    Operating temperature -25...55°C
    IP rating IP65
    Type of switch emergency stop
    Switches features return by rotating
    Number of positions 2
    Leads cables
    Mounting hole diameter Ø22.5mm
    Cable length 300mm
    Illumination LED
    Face dimensions Ø32mm
    Switch standard 22mm
    Contacts configuration NC
    DC contacts rating @R 5A / 24V DC
    AC contacts rating @R 5A / 250V AC
    Stable positions number 2
    Actuator colour red
    Button shape mushroom
    Button marking arrows
