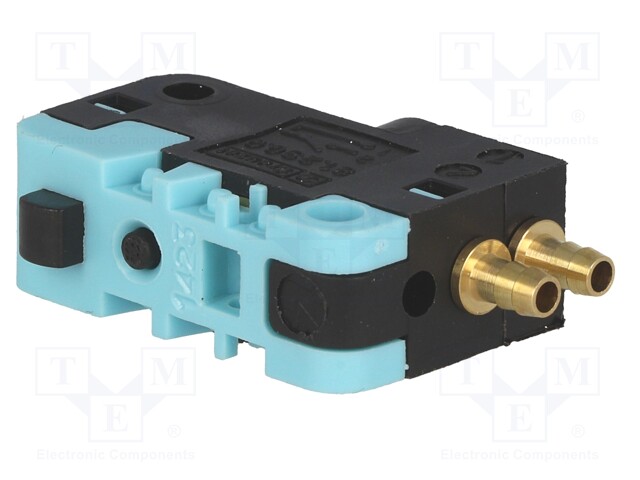

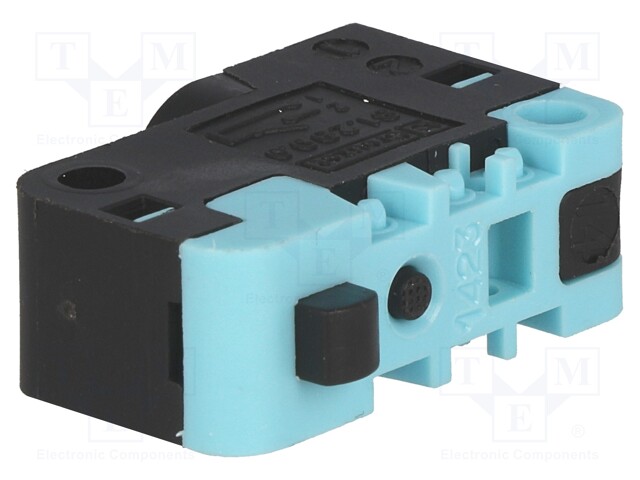

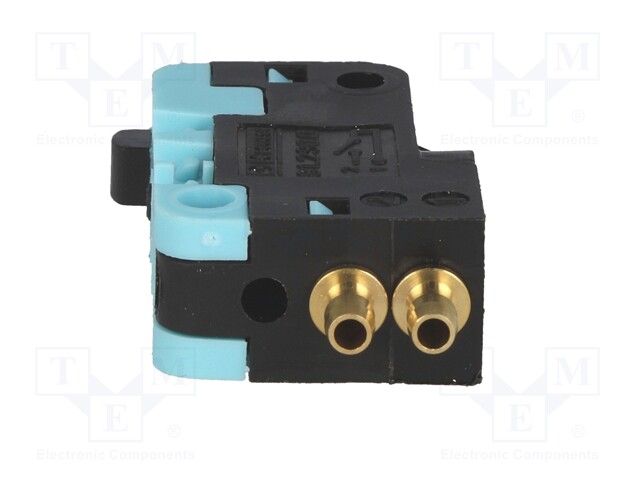

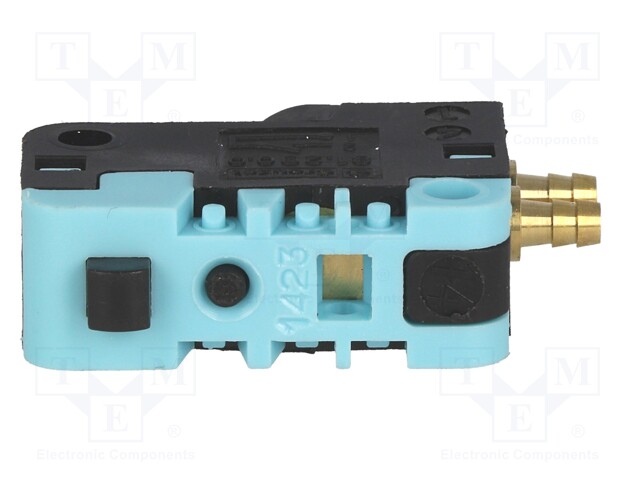

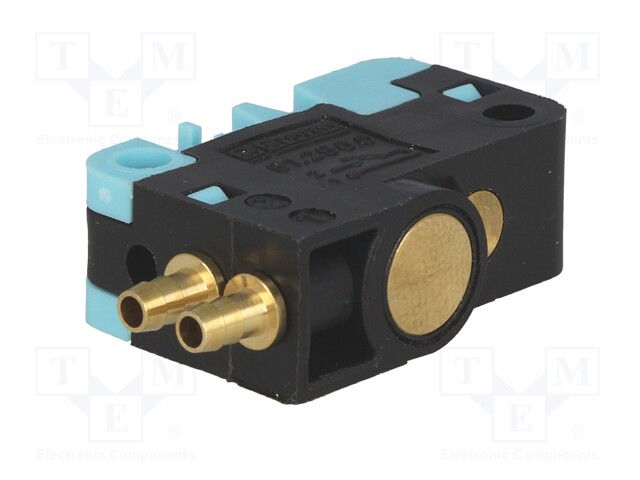

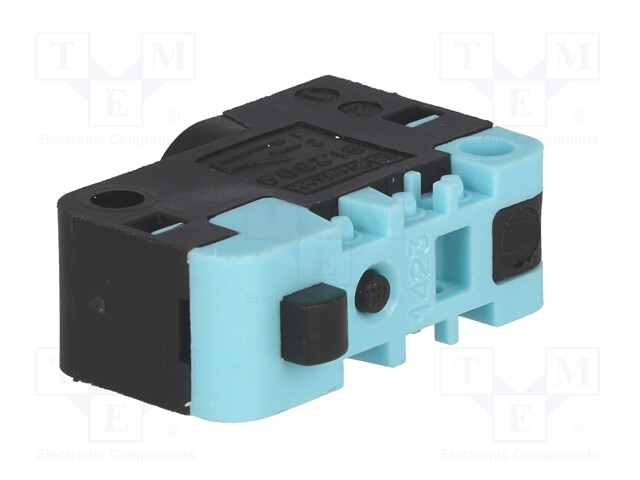

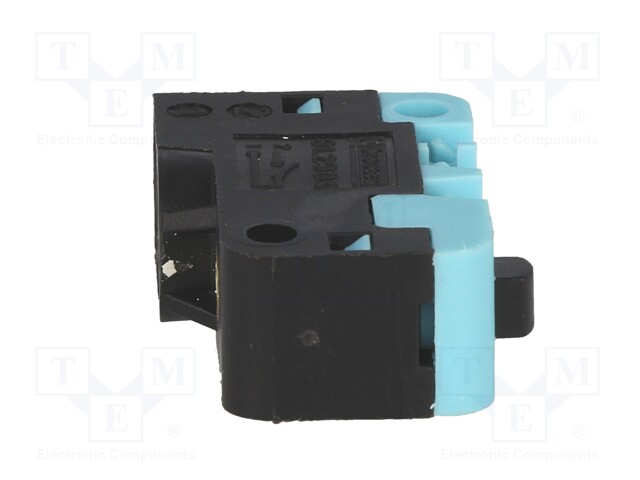

Microswitch; 2÷8bar; Connection: stub pipes Ø2.8 mm; Contacts: NC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 81290001
    Manufacturer: CROUZET
    Manufacturer code: 81290001
    • Operating temperature
    • Body dimensions
    • Mechanical durability
    • Switching time
    • Contacts configuration
    • Connection
    • Type of pneumatic module
    • Pneumatic components features
    • Pneumatic components features

    68.00 € 68.00 € (wo VAT) 68.0 EUR

    68.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch; 2÷8bar; Connection: stub pipes Ø2.8 mm; Contacts: NC

    Operating temperature -10...60°C
    Body dimensions 30x20x10.5mm
    Mechanical durability 10000000cycles
    Switching time 15ms
    Contacts configuration NC
    Connection stub pipes Ø2.8 mm
    Type of pneumatic module microswitch
    Pneumatic components features medium: compressed air, filtered, lubricated or not, pressure needed for switching at 6bar = 50g
