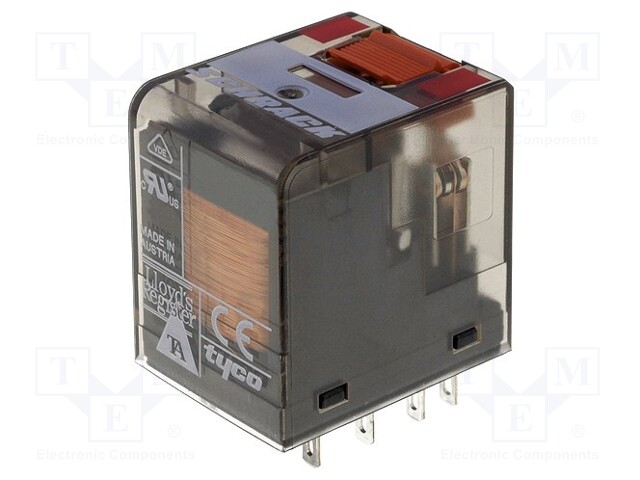

Relay: electromagnetic; 4PDT; Ucoil: 230VAC; 6A/250VAC; 6A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8-1415001-1
    Manufacturer: TE Connectivity
    Manufacturer code: 8-1415001-1
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Optional equipment

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 4PDT; Ucoil: 230VAC; 6A/250VAC; 6A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Contact material AgNi
    Body dimensions 28x22.5x30mm
    Switched voltage max. 250V AC, max. 300V DC
    Coil resistance 19465Ω
    Contacts configuration 4PDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1VA
    Relay series PT
    Optional equipment test button with blocking function
