Socket; 4mm banana; 32A; 1kV; black; gold-plated; on panel

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 66.3140-21
    Manufacturer: STÄUBLI
    Manufacturer code: 66.3140-21
    • Mounting
    • Connector
    • Colour
    • Contact plating
    • Type of connector
    • Panel cutout diameter
    • Current rating
    • Rated voltage
    • Connector variant
    • Overall length
    • Conform to the norm
    • Conform to the norm
    • Connection
    • Connection

    3.27 € 3.27 € (wo VAT) 3.27 EUR

    3.27 €

    This combination does not exist.

    Add to Cart

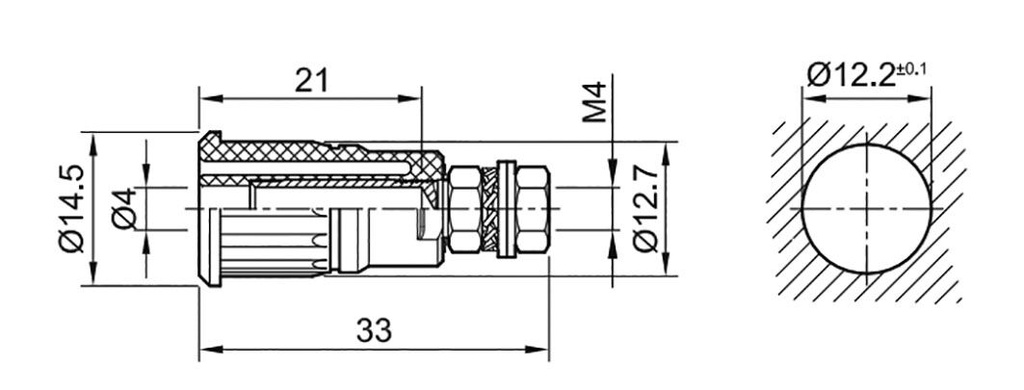

    Specification for Socket; 4mm banana; 32A; 1kV; black; gold-plated; on panel

    Mounting on panel
    Connector socket
    Colour black
    Contact plating gold-plated
    Type of connector 4mm banana
    Panel cutout diameter 12.2mm
    Current rating 32A
    Rated voltage 1kV
    Connector variant insulated
    Overall length 33mm
    Conform to the norm CAT III 1000V, EN 61010
    Connection M4, screwed
