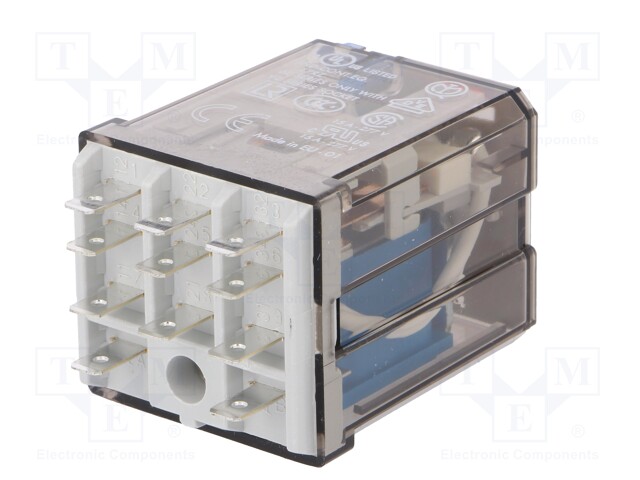

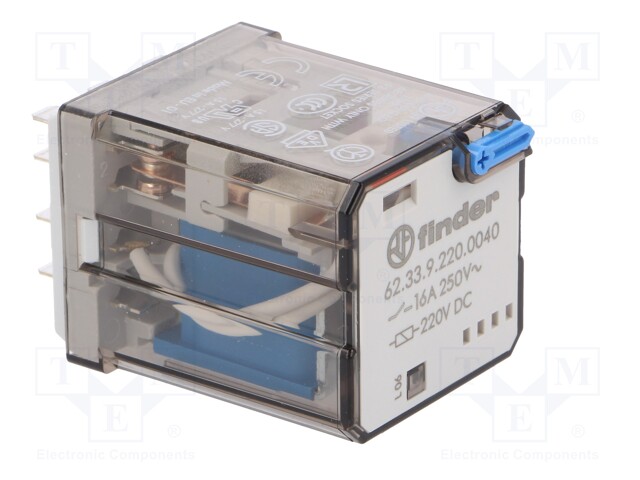

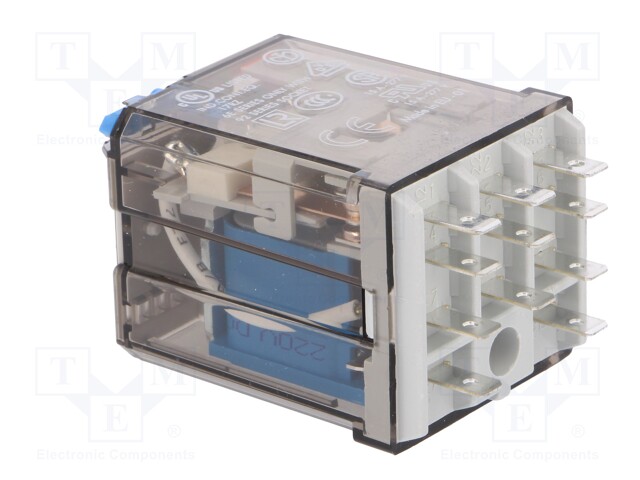

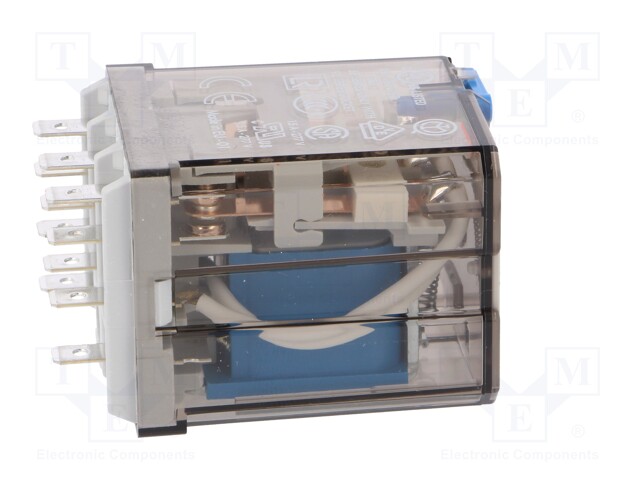

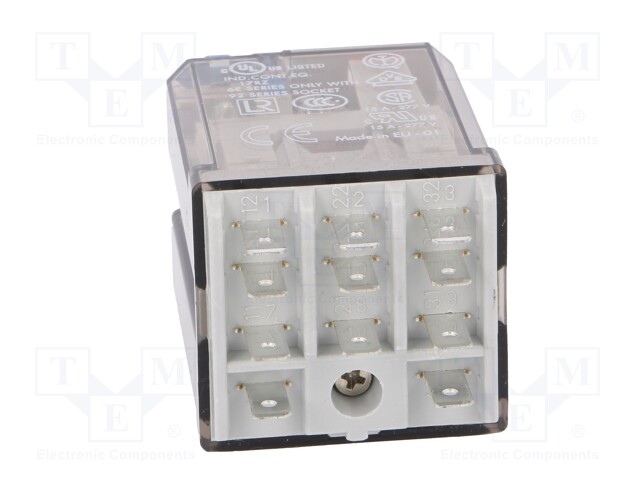

Relay: electromagnetic; 3PDT; 220VDC; 16A/250VAC; 16A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 62.33.9.220.0040
    Manufacturer: FINDER
    Manufacturer code: 62.33.9.220.0040
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Coil current

    22.27 € 22.27 € (wo VAT) 22.27 EUR

    22.27 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 3PDT; 220VDC; 16A/250VAC; 16A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Contact material AgCdO
    Switched voltage max. 400V AC
    Coil resistance 37.3kΩ
    Rated coil voltage 220V DC
    Contacts configuration 3PDT
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 30A
    Relay variant industrial
    Type of relay electromagnetic
    Relay series 62.33
    Coil current 5.8mA
